Product Details:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Weight: | Customized | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Overseas Third-party Support Available, Field Installation, Commissioning And Training |
| Material: | Stainless Steel, SS304 | Product Name: | Double Cone Rotary Vacuum Dryer |
| High Light: | SS304 rotating drum dryer,2000L rotating drum dryer,Double Cone rotating drum dryer |
||

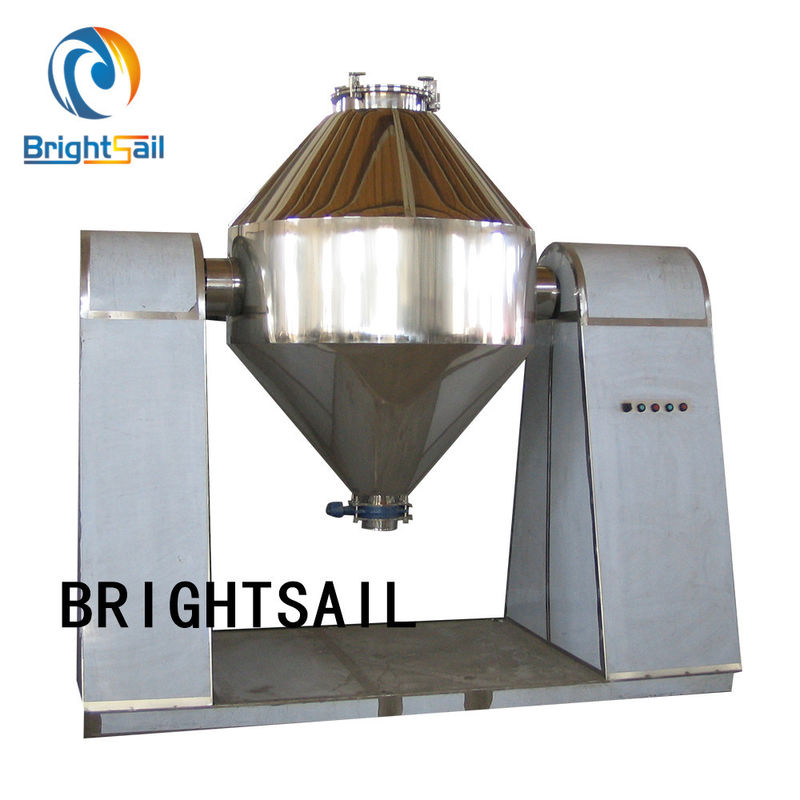

2000L Double Cone Rotary Drum Powder Dryer In Sale
The grain dryer drying machine is a new drying machine integrating mixing and drying. The condenser and vacuum pump are integrated into the dryer to form a vacuum drying device.This machine is suitable for vacuum drying and mixing of powder and granular materials in pharmaceutical, food, chemical and other industries.
Technical Data:
|
Model |
BSWD-350 | BSWD-500 | BSWD-750 | BSWD-1000 | BSWD-1500 |
| Tank volume(L) | 350 | 500 | 750 | 1000 | 1500 |
|
140 | 200 | 300 | 400 | 600 |
|
70 | 100 | 150 | 200 | 300 |
| rotate speed(rpm) | 3-13 | 6 | |||
| heating area(㎡) | 2.3 | 2.8 | 3.9 | 5.1 | 6.5 |
| motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 4 |
| floor space(L*W) | 2160*800 | 2350*800 | 2560*1000 | 2860*1300 | 3060*1300 |
|
2100 | 2250 | 2490 | 2800 | 2940 |
|
Designed pressure in container (Mpa) |
-0.25 | ||||
| Jacket design pressure(Mpa) | ≤0.3 | ||||
| weight(kg) | 1100 | 1200 | 1500 | 2800 | 3300 |
| The table shows the smaller models of our products.If you have larger production and other requirements, you can contact us. | |||||
Application Fields:
1) Materials with high temperature and heat sensitivity cannot be accepted
2) Easy to oxidize and dangerous materials
3) Materials that need to recover solvents and toxic gases
4) Materials that have requirements on crystal shape
5) Materials with extremely low residual volatile content are required
Features:
1. The machine has advanced design, simple internal structure, easy cleaning, material can be discharged completely, easy to operate.
2. It can reduce labor intensity and improve working environment.
3. At the same time, the material will rotate when the container rotates, but there is no material accumulation on the wall, so the heat transfer coefficient is high and the drying rate is large, which not only saves energy, but also dries evenly and fully with good quality.
4. It can be widely used in the drying of pharmaceutical, chemical, food fuel and other industries.
