Industrial 0.75-15kw SS304 Vacuum Drying Machine

Industrial 0.75-15kw SS304 Vacuum Drying Machine
Industrial 0.75-15kw SS304 Vacuum Drying Machine Industrial 0.75-15kw SS304 Vacuum Drying Machine Industrial 0.75-15kw SS304 Vacuum Drying Machine

Large Image :  Industrial 0.75-15kw SS304 Vacuum Drying Machine

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSWD
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

Industrial 0.75-15kw SS304 Vacuum Drying Machine

Description
Warranty: 1 Year Condition: New
Weight: 1500kg Power: 15kw
Material: Stainless Steel, SS304 Product Name: Vacuum Drying Machine
High Light:

SS304 industrial vacuum dryer

,

SS304 vacuum drying machine

,

15kw vacuum drying machine

0.75-15kw Vacuum Drying Machine Stainless Steel SS304

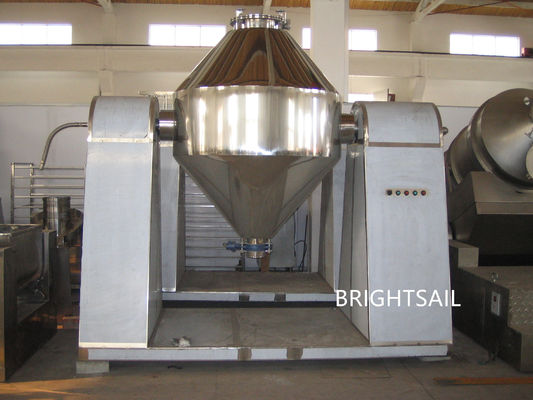

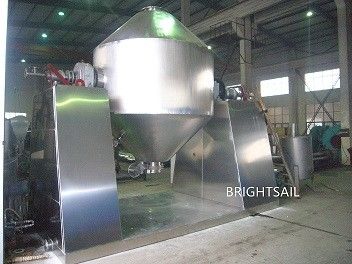

The high quality rotary food drum dryer is a new drying machine integrating mixing and drying. The condenser and vacuum pump are integrated into the dryer to form a vacuum drying device.

This washing powder dryer machine is suitable for vacuum drying and mixing of powder and granular materials in pharmaceutical, food, chemical and other industries.



Technical Data:

Model



BSWD-100 BSWD-350 BSWD-500 BSWD-750 BSWD-1000 BSWD-1500 BSWD-2000
Tank volume(L) 100 350 500 750 1000 1500 2000
  • Max loading volume(L)
40 140 200 300 400 600 800
  • Max loading(kg)
20 70 100 150 200 300 400
rotate speed(rpm) 3-13 6 5
heating area(㎡) 1.1 2.3 2.8 3.9 5.1 6.5 8.2
motor power(kw) 0.75 1.1 1.5 2.2 3 4 5.5
floor space(L*W) 2160*800 2160*800 2350*800 2560*1000 2860*1300 3060*1300 3260*1400
  • Height of frame(mm)
1750 2100 2250 2490 2800 2940 2990

Designed pressure in container

(Mpa)

-0.25
Jacket design pressure(Mpa) ≤0.3
weight(kg) 800 1100 1200 1500 2800 3300 3600

The table shows the smaller models of our products. If you have larger production and other requirements,you can contact us.



Features:

1. This machine has advanced design, simple internal structure, convenient cleaning, complete discharge of materials, and convenient operation.
2. Reduce labor intensity and improve working environment.
3. At the same time, the material will rotate when the container rotates, but there is no material accumulation on the wall, the heat transfer coefficient is high, and the drying rate is high, which not only saves energy, but also dries uniformly and fully, and has good quality.
4. It can be widely used for drying in pharmaceutical, chemical, food fuel and other industries.



Application Fields:

1) Materials with high temperature and thermal sensitivity are not acceptable

2) Dangerous goods easy to oxidize

3) Materials requiring recovery of solvents and toxic gases

4) Materials with requirements for crystal shape

5) Materials with very low residual volatiles are required
