Product Details:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Weight: | 800-8600KG | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Overseas Third-party Support Available, Field Installation, Commissioning And Training |
| Material: | Stainless Steel, SS304 | Product Name: | Double Cone Rotary Vacuum Dryer |
| Name: | Double Cone Vacuum Dryer | Capacity: | Diffrent Capacity |
| Usage: | Dryer And Mixer | Type: | Double Cone Equipment |
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, | ||
| High Light: | double cone rotary vacuum dryer,GMP Rotary Vacuum Dryer,70kg Rotary Vacuum Dryer |
||

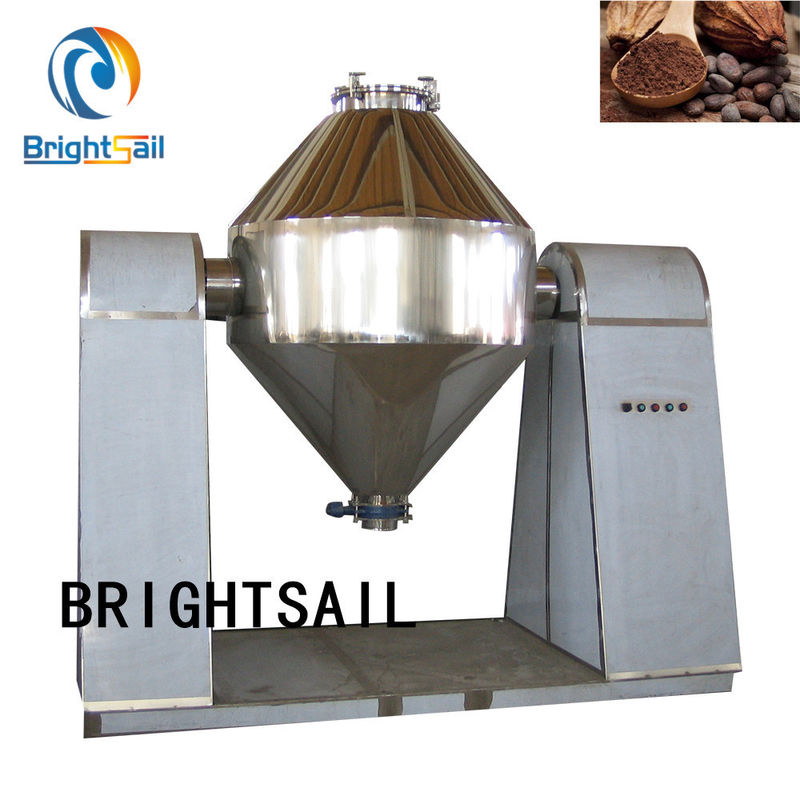

szg series double cone rotary vacuum dryer
The szg series double cone rotary vacuum dryer is advanced in design, simple in inner structure, easy for cleaning, to discharge all raw material, convenient in operation, lowing the strength of labor and improving working environment. Meanwhile raw material is rotating accompanying with the rotating of container, the wall of container can not only save energy but also make raw material dry evenly and have good quality. It can widely apply to dry raw materials of pharmaceutical only save energy but also make raw material dry evenly and have good quality. It can widely apply too dry raw materials of pharmaceutiacl industry, chemical industry, foodstuff industry, dyestuff industry and so on. The equipment is in conformity with the requirments of "GMP".
Features:
1. Advanced design, simple internal structure, all materials can be discharged, easy to clean.
2. During the operation of the machine, the materials will also rotate together, and the drying and mixing will be combined together, which not only saves energy, but also the materials are dried uniformly and fully with good quality.
3. It can be widely used for drying in pharmaceutical, chemical, food fuel and other industries.
Application Fields:
This machine is suitable for the vacuum drying and mixing of powder and granular materials in the pharmaceutical, food, chemical and other industries, especially materials with the following requirements:
1) Cannot accept high temperature and heat sensitive materials
2) Easily oxidized and dangerous materials
3) Materials that need to recover solvents and toxic gases
4) Materials that require crystal shape
5) Materials requiring extremely low residual volatile content
Technical Data:
|
Model
|
BSW-100 | BSW-350 | BSW-500 | BSW-750 | BSW-1000 | BSW-1500 | BSW-2000 | BSW-3500 | BSW-4500 | BSW-5000 |
| Tank volume(L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
|
40 | 140 | 200 | 300 | 400 | 600 | 800 | 1400 | 1800 | 2000 |
|
20 | 70 | 100 | 150 | 200 | 300 | 400 | 700 | 900 | 1000 |
| rotate speed(rpm) |
3-13 |
6 | 5 | 4 | 4 | 4 | ||||
| heating area(㎡) | 1.1 | 2.3 | 2.8 | 3.9 | 5.1 | 6.5 | 8.2 | 12.2 | 16.5 | 18.2 |
| motor power(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| floor space(L*W) | 2160*800 | 2160*800 | 2350*800 | 2560*1000 | 2860*1300 | 3060*1300 | 3260*1400 | 3760*1800 | 3960*2000 | 4400*2500 |
|
1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
|
Designed pressure in container (Mpa) |
0.1-0.25 | |||||||||
| Jacket design pressure(Mpa) | ≤0.3 | |||||||||
|
weight(kg) |
800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
The table shows the smaller models of our products. If you have larger production and other requirements, you can contact us.
