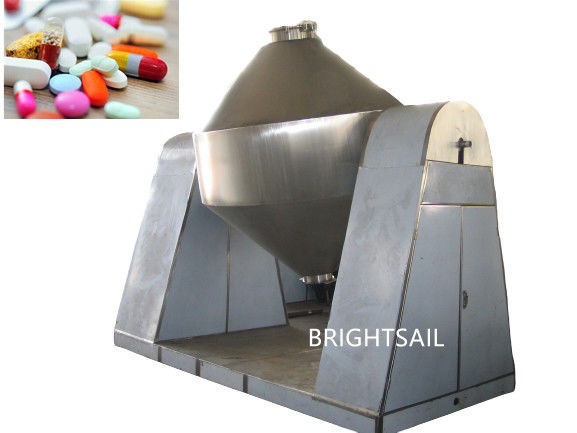

Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer

Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer
Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer

Large Image :  Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSWD
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer

Description
Warranty: 1 Year Heating Area: 1.1-18.2㎡
The Largest Power: 15kw After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Overseas Third-party Support Available, Field Installation, Commissioning And Training
Material: Stainless Steel, SS304 Product Name: Vacuum Rotary Double Cone Dryer
High Light:

double cone rotary vacuum dryer

,

1.5kw rotary cone vacuum dryer

,

5000l rotary cone vacuum dryer

Large Volume 5000L Vacuum Rotary Double Cone Dryer 1.5kw

Dryer granulator equipment is a new type of dryer that combines mixing and drying. Condensers and vacuum pumps are integrated into the dryer to form a vacuum drying device.
Drying machine dryer is suitable for vacuum drying and stirring of powdered and granular materials in pharmaceutical, food, chemical and other industries.



Application Fields:

1) Materials with high temperature and thermal sensitivity are not allowed

2) Dangerous goods that are easy to oxidize

3) Materials that need to recover solvents and toxic gases

4) Materials that have requirements on crystal shape

5) Materials requiring very low residual volatiles



Technical Data:

Model



BSWD-100 BSWD-350 BSWD-500 BSWD-750 BSWD-1000 BSWD-1500 BSWD-2000 BSWD-3500
Tank volume(L) 100 350 500 750 1000 1500 2000 3500
  • Max loading volume(L)
40 140 200 300 400 600 800 1400
  • Max loading(kg)
20 70 100 150 200 300 400 700
rotate speed(rpm) 3-13 6 5 4
heating area(㎡) 1.1 2.3 2.8 3.9 5.1 6.5 8.2 12.2
motor power(kw) 0.75 1.1 1.5 2.2 3 4 5.5 7.5
floor space(L*W) 2160*800 2160*800 2350*800 2560*1000 2860*1300 3060*1300 3260*1400 3760*1800
  • Height of frame(mm)
1750 2100 2250 2490 2800 2940 2990 3490

Designed pressure in container

(Mpa)

-0.25
Jacket design pressure(Mpa) ≤0.3
weight(kg) 800 1100 1200 1500 2800 3300 3600 6400
The table shows the smaller models of our products. If you have larger production and other requirements, you can contact us.



Features:

1. The machine design is advanced, the internal structure is simple, the cleaning is convenient, the material is complete, the operation is convenient.
2. Reduce labor intensity and improve the working environment.
3. At the same time, when the container rotates, the material will also rotate, but the wall is free of material accumulation, high heat transfer coefficient, high drying rate, not only energy saving, but also uniform and adequate drying, good quality.
4. Can be widely used in pharmaceutical, chemical, food fuel and other industries drying.



Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer 0







Our Company:

Brightsail Machinery Co., Ltd. was established for nearly 15 years, designing and manufacturing overall powder processing solutions, such as powder grinders, mixers, dryers, etc., for the chemical, pharmaceutical, food, mineral, cosmetics and plastic industries.

Large Volume 5000L 1.5kw Double Cone Rotary Vacuum Dryer 1
