SS304 1000kg Loading Weight Wood Powder Dryer

SS304 1000kg Loading Weight Wood Powder Dryer
SS304 1000kg Loading Weight Wood Powder Dryer SS304 1000kg Loading Weight Wood Powder Dryer SS304 1000kg Loading Weight Wood Powder Dryer

Large Image :  SS304 1000kg Loading Weight Wood Powder Dryer

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSWD
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

SS304 1000kg Loading Weight Wood Powder Dryer

Description
Warranty: 1 Year Condition: New
Max Loading: 20-1000kg After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Overseas Third-party Support Available, Field Installation, Commissioning And Training
Material: SS304 Product Name: Wood Powder Electric Dryer
High Light:

SS304 wood powder dryer

,

1000kg wood powder dryer

SS304 Wood Powder Electric Dryer 20-1000kg Loading Weight

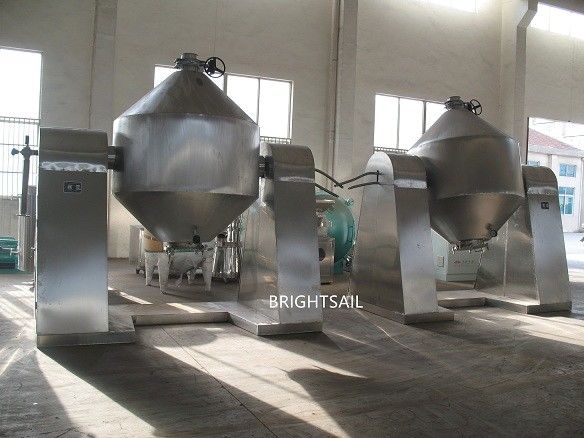

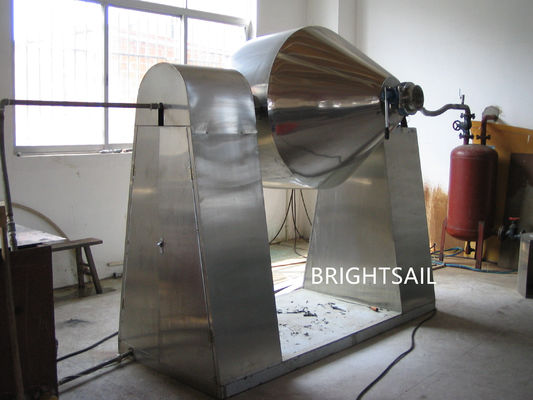

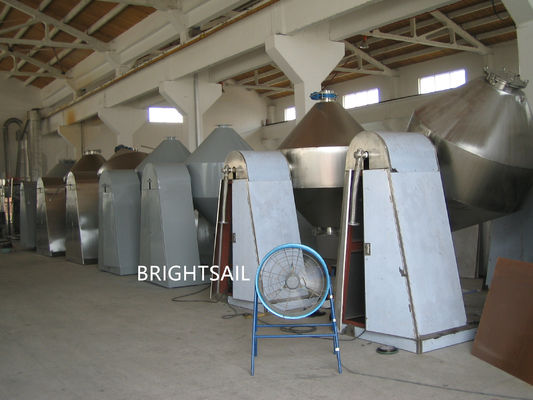

BSWD rotary dryer is a combination of mixing and drying a new type of dryer. The condenser and the vacuum pump are combined into the dryer to form a vacuum drying device. Rotary drying machine for vacuum drying and agitation are suitable for powdered and granular materials in dispensing, food, chemical and other industries.



Features:

1. The this aircraft designs advanced, the internal structure is simple, the clean is convenient, chooses the material to be complete, ease of operation.
2. Reduces the labor intensity, the improvement working conditions.
At the same time

3., when the vessel revolves, the material also can revolve, but the wall surface non-material stack, the heat transfer coefficient is high, the drying velocity is quick, not only conserves energy, moreover dry even full, the quality is good.
4. But widely uses in manufacturing drugs, profession and so on chemical, food fuel dryness.



Application Fields:

1) Materials with high temperature and thermal sensitivity are not allowed

2) Dangerous goods that are easy to oxidize

3) Materials that need to recover solvents and toxic gases

4) Materials that have requirements on crystal shape

5) Materials requiring very low residual volatiles



Technical Data:

Model



BSWD-100 BSWD-350 BSWD-500 BSWD-750 BSWD-1000 BSWD-1500 BSWD-2000 BSWD-3500
Tank volume(L) 100 350 500 750 1000 1500 2000 3500
  • Max loading volume(L)
40 140 200 300 400 600 800 1400
  • Max loading(kg)
20 70 100 150 200 300 400 700
rotate speed(rpm) 3-13 6 5 4
heating area(㎡) 1.1 2.3 2.8 3.9 5.1 6.5 8.2 12.2
motor power(kw) 0.75 1.1 1.5 2.2 3 4 5.5 7.5
floor space(L*W) 2160*800 2160*800 2350*800 2560*1000 2860*1300 3060*1300 3260*1400 3760*1800
  • Height of frame(mm)
1750 2100 2250 2490 2800 2940 2990 3490

Designed pressure in container

(Mpa)

-0.25
Jacket design pressure(Mpa) ≤0.3
weight(kg) 800 1100 1200 1500 2800 3300 3600 6400
The table shows the smaller models of our products.If you have larger production and other requirements, you can contact us.



SS304 1000kg Loading Weight Wood Powder Dryer 0



Our Company:

Brightsail Machinery Co., Ltd. has been designing and manufacturing total powder processing solutions for the chemical, pharmaceutical, food, mining, cosmetics and plastics industries for nearly 15 years, such as shredders, mixers, dryers, etc.
