Product Details:
|
| Height Of Frame: | 1750mm-4200mm | Heating Area: | 1.1-18.2㎡ |
|---|---|---|---|
| Jacket Design Pressure: | ≤0.3 | Service: | Provide |
| Material: | Stainless Steel, SS304 | Product Name: | Rotary Vacuum Dryer |
| High Light: | SS304 rotary cone vacuum dryer,SS304 rotary vacuum dryer,20kg rotary cone vacuum dryer |
||
≤0.3 Jacket Design Pressure Rotary Vacuum Dryer Stainless Steel

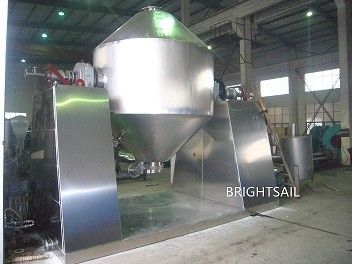

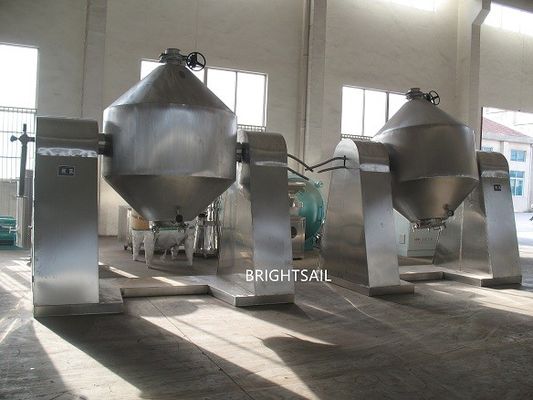

The BSWD vacuum rotary double cone dryer revolving dryer is the new dryer which one kind of mix dry unifies.The condenser and the vacuum pump union enters the water extractor, the vacuum production drying apparatus.The rotary heat pump dryer is suitable for the vacuum drying agitation, is suitable powdery in professions and so on ingredient, food, chemical industry, the granular material.
Application Fields:
1) does not allow the use to have the high temperature and the heat sensitivity material
2) easy to oxidize dangerous material
3) needs to recycle the solvent and the virulent gas material
4) pair of crystal shapes have the request material
5) needs the extremely low residual volatile material
Technical Data:
|
Model
|
BSWD-100 | BSWD-350 | BSWD-500 | BSWD-750 | BSWD-1000 | BSWD-1500 | BSWD-2000 | BSWD-3500 |
| Tank volume(L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 |
|
40 | 140 | 200 | 300 | 400 | 600 | 800 | 1400 |
|
20 | 70 | 100 | 150 | 200 | 300 | 400 | 700 |
| rotate speed(rpm) | 3-13 | 6 | 5 | 4 | ||||
| heating area(㎡) | 1.1 | 2.3 | 2.8 | 3.9 | 5.1 | 6.5 | 8.2 | 12.2 |
| motor power(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| floor space(L*W) | 2160*800 | 2160*800 | 2350*800 | 2560*1000 | 2860*1300 | 3060*1300 | 3260*1400 | 3760*1800 |
|
1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 |
|
Designed pressure in container (Mpa) |
-0.25 | |||||||
| Jacket design pressure(Mpa) | ≤0.3 | |||||||
| weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 |
|
The table shows the smaller models of our products.If you have larger production and other requirements, you can contact us. |
||||||||
Features:
1. The machine has advanced design, simple internal structure, easy cleaning, complete selection of materials and easy operation.
2. Reduce labor intensity and improve working conditions.at the same time
3. When the container rotates, the material can also rotate, but the wall surface is not material accumulation, the heat transfer coefficient is high, and the drying speed is fast, which not only saves energy, but also dries uniformly and fully, with good quality.
4. It can be widely used in manufacturing medicine, chemical industry, food and fuel drying and other industries.
Our Company:
Brightsail Machinery Co., Ltd. has been designing and manufacturing total powder processing solutions for the chemical, pharmaceutical, food, mining, cosmetics and plastics industries for nearly 15 years, such as shredders, mixers, dryers, etc.
