Product Details:
|
| Models: | Customized | Capacity: | 20-1800 Kg/h |
|---|---|---|---|
| Feed Motor: | 0.55-1.5kw | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Function: | Pulverizing |
| Another Name: | Dry Ginger Powder Crusher | Applicable Materials: | Spices That Contain Little Oil,herbs,rice... |
| High Light: | 20kg/hr Powder Crusher Machine,pulverizing powder crusher machine,powder crusher pulverizing machine |
||
20-1800 kg per hr 60 To 2500 Mesh Fineness Dry Ginger Grinding Machine
Product Introduction Of air classifier mill:
BSP is an advanced pulverizer, which has the advantages of stable technical performance, low noise, low consumption, high efficiency, adjustable fineness and low temperature rise.

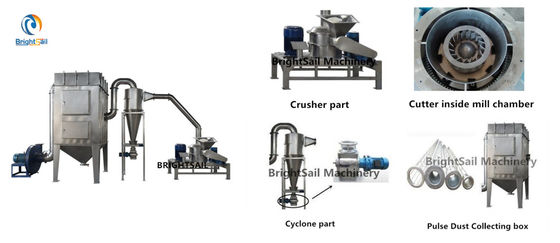

Our ginger crusher machine is very suitable for sugar, food powder, herbs, spices and so on. The unit consists of crusher, powder collecting device, conveying pipe, electric control cabinet, etc. The crusher part is equipped with air classification equipment, so that the product size can be adjusted arbitrarily and excessive crushing can be prevented. The crushed powder is transported to the cyclone separator under negative pressure and discharged by the discharge valve.
Technical data Of Dry Ginger Grinding Machine:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Powder processing machine:
We can provede not only grinding machine but also other related machines for you to deal with
different materials.We are slao experienced in production lines,it can save more times.It can save
more time and greatly increase production capacity.
Text of dried mushroom:
You can click this link below to know more about this ginger grinding machine.
Dry ginger grinding:https://youtu.be/5neTwhhKE80
Lesf grinding (about 200 mesh):https://youtu.be/9po1b5HLdTs
Turmeric grinding(about 200 mesh):https://youtu.be/WI-cz8sbBXo
Our Company:
Brightsail Industrial Group Co. , Ltd. is the Trading Department of Brightsail Machinery Co. , Ltd. and Jiangyin Hengsheng Steel Structure Co. , Ltd. . It was established in 2002. We provide professional powder processing integrated solutions, grinding machines, mixers, sieves, welding services, welding machines, chemical powder... after 15 years of development and accumulation, our company has become one of the most influential equipment manufacturers. Willing to grow and develop together with new and old customers.
