Product Details:
|
| Models: | Customized | Capacity: | 20-1800 Kg/h |
|---|---|---|---|
| Speed Of Principle Axia(rpm): | -6500~-3100 | Finest Fineness: | 2500 Mesh |
| Crusher Motor: | 11-75kw | Function: | Powder Making |
| Another Name: | Ginger Processing Machine | Applicable Materials: | Ginger,herbs,rice... |
| High Light: | 2500mesh ginger powder making machine,75kw ginger powder making machine,iso ginger powder making machine |
||
About 2500 Mesh Finest Fineness Contains No Screen Fully Automatic Ginger Powder Grinding Machine
Product Introduction Of Ginger Powder Grinding Machine:
The BSP ginger powder processing machine is an advanced crusher, which has the advantages of stable technical performance, low noise, low energy consumption, high efficiency, adjustable fineness, and low temperature rise.

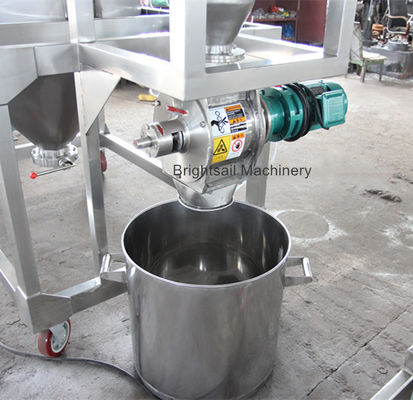

Our ginger crusher machine is very suitable for sugar, food powder, herbs, spices, etc. The unit is composed of crusher, powder collecting device, conveying pipe, electric control cabinet, etc. The crusher part is equipped with air classification equipment, so that the product size can be adjusted at will to prevent excessive crushing. The pulverized powder is transported to the cyclone separator under negative pressure and discharged by the discharge valve.
Working method Of Ginger Powder Grinding Machine:

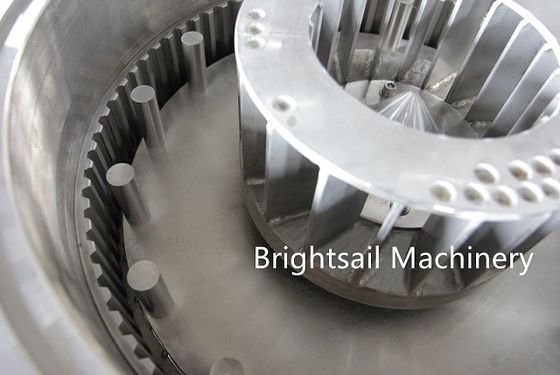

The raw material is conveyed to the grinding chamber by the screw feeder and is sheared by the Eddy current and high frequency vibration produced by the high-speed cutting machine. As a result of negative pressure, powder into the wheel. Through the rotation of the grading wheel and the centrifugal force of the air knife, the powder whose size is larger than the grading size is returned to the grinding chamber. The qualified powder will enter the pipe and be discharged.
Main features Of Dry Ginger Powder Grinding Machine:
1. Very fine powder manufacturing. In the food industry, materials can be ground to more than 300 Mesh (such as rice, Turmeric) ; in the chemical industry, materials can be ground to more than 1000 Mesh. (EG TALC)
2. When the crushing chamber is in operation, the particle size of powder can be changed by frequency conversion and speed regulation without the need of screen Mesh.
3. In the production process there is no dust, dust can be collected in the dust collection box.
Our service Of Dry Ginger Powder Grinding Machine:
All products purchased in our company are guaranteed for one year. If there are quality problems during the warranty period, our company will provide free warranty.
a. Before the machine is sent, we will test and adjust it. You can use it directly after you receive it.
b. Send operation video and instructions to customers to help them use the machine better.
In addition, our company also provides lifelong technical support and accessories.
After sales service is not limited by time, we will solve the problem for you in time. If you encounter problems when using our products, please solve them in time
Technical data Of Ginger Powder Grinding Machine:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
You can click this link below to know more about this ginger grinding machine.
Dry ginger grinding:https://youtu.be/5neTwhhKE80
Lesf grinding (about 200 mesh):https://youtu.be/9po1b5HLdTs
Turmeric grinding(about 200 mesh):https://youtu.be/WI-cz8sbBXo

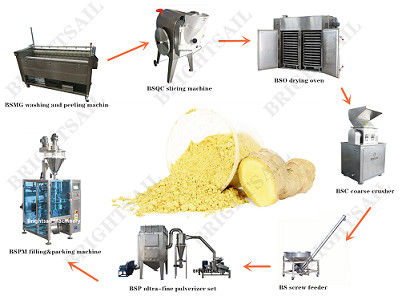

We can provede not only grinding machine but also other related machines for you to deal with different materials.We are slao experienced in production lines,it can save more times.It can save more time and greatly increase production capacity.
Good comments from customers:
How To Buy This Machine:
First, discuss the details and prices of all the machines with our sales staff.
Second, confirm the price and terms of payment trade guarantee/wire transfer/escrow/western union remittance, etc. .
Third, send us the purchase order, confirm our Proforma Invoice and arrange the deposit. As soon as we receive the deposit, we will arrange the production.
Finally, once the machine is ready, please arrange the final payment for us.
After receiving the final payment, we will arrange the booking and send the machine to you.
