Product Details:
|
| Models: | Customized | Maximum Capacity: | 1800 Kg/h |
|---|---|---|---|
| Crush Motor: | 11-55kw | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Function: | Powder Crushing |
| Another Name: | Ginger Powder Machine | Applicable Materials: | Ginger,herb,leaf,seaweed |
| High Light: | 1800kg/hour ginger powder processing machine,55kw ginger powder processing machine,CE ginger powder processing machine |
||
Yield Up To 1800kg Per Hr 6 To 2500 Mesh Powder Fineness Ginger Powder Processing Machine

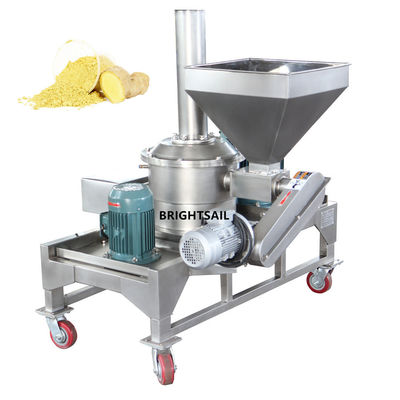

Product Introduction Of Ginger Powder Processing Machine:
BSP ginger powder machine is an advanced grinding machine, with stable technical performance, low noise, low energy consumption, high efficiency, fineness adjustable, low temperature rise and so on.

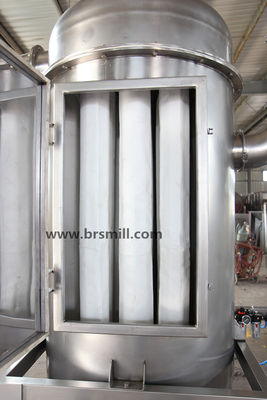

Our ginger grinding machine are perfect for sugar, food powder, herbs, spices, etc. . The unit is composed of crusher, powder collecting device, conveying pipe, electric control cabinet and so on. Crusher part equipped with air classification equipment, so that the product size can be arbitrarily adjusted to prevent excessive crushing. The pulverized powder is conveyed to the cyclone under negative pressure and discharged by the discharge valve.
Working method Of Ginger Powder Processing Machine:
The raw materials are conveyed to the mill chamber by the screw feeder, and sheared by the eddy current and high frequency vibration generated by the high-speed cutting machine. Due to the negative pressure, the powdery powder enters the total wheel. Through the rotation of the classification wheel and the centrifugal force of the air knife, the powder with a particle size larger than the classification particle size is returned to the grinding chamber. The qualified powder will enter the pipeline and be discharged.
Main features Of Ginger Powder Processing Machine:
1. Very fine powder manufacturing. In the food industry, materials can be ground to more than 300 mesh (such as rice and turmeric); in the chemical industry, materials can be ground to more than 1000 mesh. (such as talc)
2. When the grinding chamber is in operation, the particle size of powder can be changed by frequency control without screen.
3. There is no dust in the production process, and the dust can be collected in the dust box.
Our service Of Ginger Powder Processing Machine:
All products purchased in our company are guaranteed for one year.
If quality problems occur during the warranty period, our company will provide free warranty.
a. Before the machine is sent, we will test and adjust it, and you can use it directly after you receive it.
b. Send operation videos and operation instructions to customers to help customers use the machine better.
In addition, our company also provides lifetime technical support and accessories.
After-sales service is not limited by time, we will solve the problem for you in time. If you encounter problems when using our products, please reply in time.
Technical data Of Ginger Powder Processing Machine:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
You can click this link below to know more about this ginger grinding machine.
Dry ginger grinding:https://youtu.be/5neTwhhKE80
Lesf grinding (about 200 mesh):https://youtu.be/9po1b5HLdTs
Turmeric grinding(about 200 mesh):https://youtu.be/WI-cz8sbBXo
We provide the full complete set of equipment described in the above information!
Each customer's process requirements will be a little different, we will design system scheme and give quotation according to the customer's specific requirements.
Welcome inquiry!
Good comments from customers:
How To Buy This Machine:
First of all, discuss all machines details and price with our sales person.
Secondly, confirm the price and payment terms Trade assurance/TT/Escrow/Western Union etc.
Thridy, send us purchased order and confirm our Proforma Invoice and arrange deposit. Once well received the deposit, we will arrange production.
At last, please arrange balance payment for us once machine is ready, then we will arrange shipment booking after received the balance payment and shipping the machine to you.
