Product Details:
|
| Warranty: | One Year | Maximum Capacity: | 5000kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304 |
| Suitable Materials: | Crystal Materials | Package: | Container |
| Another Name: | Sugar Grinding Machine | Advantage: | High Stability,easy To Operate |
| High Light: | 10 mesh sugar milling machine,5000kg/h sugar milling machine,Sus Sugar Milling Machine |
||

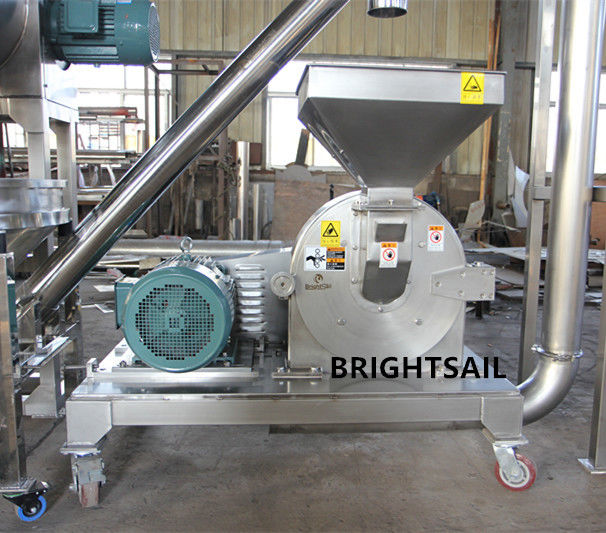

50-5000 Kg Per Hr Grinding Capacity Suitable For Crystal Materials Sugar Milling Machine
Production Of Sugar Milling Machine:
The BSG sugar mill produced by our company is a kind of high-efficiency mill designed and developed by our company. The machine has good grinding effect on crystal materials such as sugar, salt and baking soda. Also suitable for grinding spices, herbs, grains and so on. There are two kinds of knives for you to choose from. One is the hammer type, the other is the disc type. The disc grinding effect is slightly better than the hammer grinding effect, that is, the disc grinding effect is better than the hammer grinding effect. The disk type generates heat more easily than the hammer type. When the material is highly heat sensitive, the hammer is preferred.
Working Method Of Sugar Milling Machine:
The material is comminuted by the high-speed relative motion of the moving fixed disk and the rotating disk, the impact of the slot disk, the friction and the mutual impact of the material. The crushed material can be discharged directly from the crushing chamber of the machine, and the required particle size can be obtained through the installation of screens with different pore sizes.
Main Features Of Sugar Milling Machine:
1) the whole machine is made of stainless steel, and the inner surface of the shell becomes smooth after processing, which changes the residual powder phenomenon caused by the former rough inner surface of the machine. So that the production of drugs, food, chemical products more in line with National Standards and GMP requirements.
2) the mill screen is made of high quality stainless steel. When another size of powder is needed, the screen can be easily changed.
3) excellent cyclone powder discharge system, through the powder discharge motor automatically rotating powder discharge device, you want the last uniform powder discharge, so that the last powder discharge smooth, will not fly powder.
4) all stainless steel structure, in line with GMP standards, in line with food grade, chemical grade, pharmaceutical grade standards.
Our service:
Warranty:
one year for material and process defects of equipment and parts. Any parts that need to be replaced will be shipped free of charge, but installation Labor is not included. Warranty does not cover misuse, user error, or vulnerable parts.
Technical support:
1. Provide 24-hour technical support by phone, email or MSN / Skype
2. Friendly English operation manual and operation video
3. Provide overseas mechanical maintenance engineers
After-sales service:
1. A normal machine must be adjusted before it is dispatched.
2. You'll be able to use these machines in no time.
3. You can get free machine training advice in our factory.
4. You can also get free advice and advice, technical support and services via e-mail/fax/phone and life-long technical support.
Technical data Of Sugar Milling Machine:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
