Product Details:
|
| Warranty: | One Year | Maximum Capacity: | 5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304 |
| Suitable Materials: | Sugar,salt | After-sales Service: | Provide |
| Another Name: | Icing Sugar Making Machine | Advantage: | Long Machine Life |
| High Light: | 5000kg/h sugar grinding mill,50kg/h sugar grinding mill,120 mesh sugar grinding mill |
||
Up to 120 mesh fineness 50-5000kg per hr capacity multifunctional powder sugar grinding mill
Production Of Powder Sugar Grinding Mill:
BSG sugar processing machinery is a kind of high efficiency sugar factory designed and developed by our company. This machine has good grinding effect on crystal materials such as sugar, salt and baking soda. It is also suitable for grinding spices, herbs, grains, etc. There are two kinds of knives for you to choose from. One is hammer type and the other is disc type. The effect of disc grinding is slightly better than that of hammer grinding, that is, the effect of disc grinding is better than that of hammer grinding. The disc type is more likely to generate heat than the hammer type. When the material is highly heat sensitive, hammerhead is preferred.
Working Method Of Powder Sugar Grinding Mill:

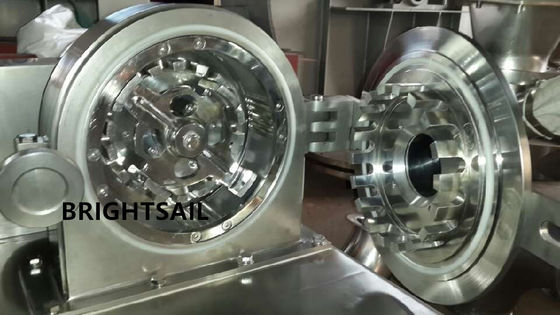

The material is crushed by the high-speed relative motion of the moving fixed disk and the rotating disk, the impact of the grooved disk, the friction and mutual impact of the material. The crushed materials can be directly discharged from the crushing chamber of the crusher, and the required particle size can be obtained by installing screens with different pore sizes.
Main Features Of Powder Sugar Grinding Mill:
1) The whole machine is made of stainless steel. After processing, the inner surface of the outer shell becomes smooth, which changes the phenomenon of residual powder caused by the rough inner surface of the previous machine. Make the produced medicines, foods, and chemical products more in line with national standards and GMP requirements.
2) The grinding net is made of high-quality stainless steel. When another particle size powder is needed, the screen can be easily replaced.
3) All stainless steel structure, in line with GMP standards, in line with food-grade, chemical-grade, and pharmaceutical-grade standards.
Technical data Of Powder Sugar Grinding Mill:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Packing&Shipping:
1. We provide delivery methods: Express, air, sea
2. Order can be accepted: full container, less container
3. Mode of delivery: EXW, FOB, CIF, CNF, etc.
We always choose the most economical and reliable shipping company to ensure that you receive the goods in time.
B / L and express bill number will be provided to you after delivery
We provide the complete set of equipment described in the above information! Each customer's process requirements will be different, we will according to the specific requirements of the customer design system and give a quotation.
