Product Details:
|
| Product Name: | Tea Packaging Machine Automatic | Sealing Type: | The Trilateral Sealing |
|---|---|---|---|
| Filling Range: | 3 - 10 G（ 1.6 ~ 26 Ml ） | Packaging Speed: | 30 - 40 Bags / Min |
| Overall Dimension: | 1750*740*1950 Mm | Total Weight: | 500 Kg |
| Other Name: | Tea Bag Filling Machine | Advantage: | High Stability,easy To Operate |
| High Light: | Medicinal Tea Powder Packing Machine,500Kg Tea Powder Packing Machine,Trilateral Sealing Tea Powder Packing Machine |
||

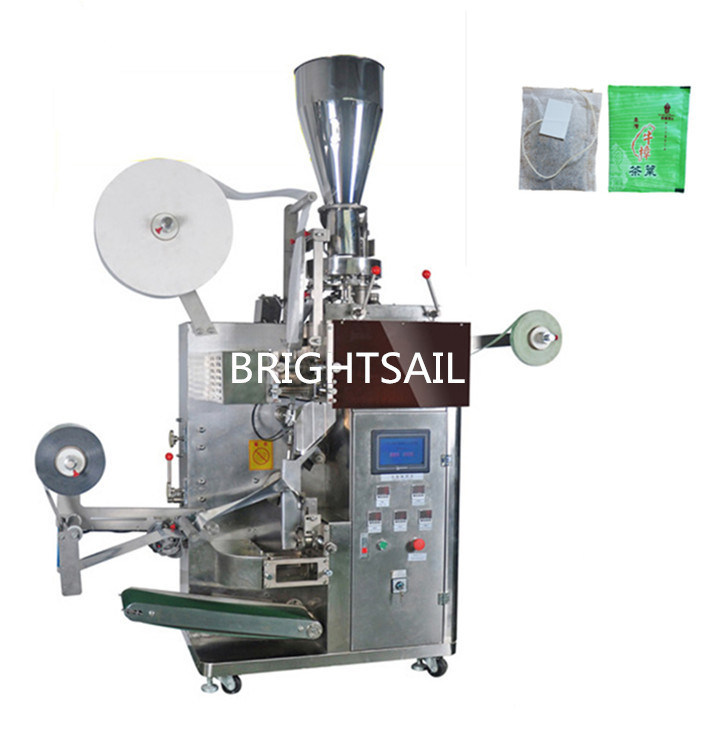

3 To 10g Filling Range herbal tea packaging machine
This tea bag machine can automatically complete bag making, filling, measuring, sealing, cutting, counting, stepless Speed adjustment and other functions, the configuration of the accessories of this machine can complete shock cutting, date printing, easy features such as tearing.
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
Technical Data :
| Model | BS - NW160 all-in-one |
| Sealing type | The trilateral sealing |
| Filling range | 3 - 10 g( 1.6 ~ 26 ml ) |
| Size of Inner Bag | (L) :50 - 70 mm ( W ) :45 - 80 mm |
| Size of Outer Bag | (L) :80 - 120 mm ( W ) :75 - 95 mm |
| Packaging speed | 30 - 40 bags / min |
| Overall dimension | 1750*740*1950 mm |
| Total weight | 500 kg |
| Total Power | AC220V/ 50Hz /3.7kw |
| Gas source | ≥0.4m /min |
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
Application:
It is suitable for inside and outside bag disposable packaging of small particles such as tea, medicinal tea and health tea grass roots.
Features :
1. human-machine interface, convenient and quick parameter settings.
2. Self diagnosis failure function, failure displayed clearly.
3. High sensitive optical electric color mark tracking system and digital input cut position, which make the
sealing and cutting more accurate.
4. Separated PID control system for temperature, suitable for various packing materials.
5. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
6. Simple driving system, reliable working, convenient maintenance.
7. All controled by program, convenient for function adjusting and upgrading.
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
Related machines :
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
If you have different requierments on material processing,such as grinding,mixing,packing,feeding,drying,roasting...
you can click the link below to know more about us.
https://www.youtube.com/channel/UC_-Q51cmz9MyQkX85hx-rIA/search?query=pack
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
tea bag filling and sealing machinepacking tea machineherbal tea packaging machine
