Product Details:
|
| Product Name: | Tea Bag Packing Machine | Packed Weight: | 1-20 G/bag |
|---|---|---|---|
| Outer Diameter Of Coil: | ≤Φ350㎜ | Production Speed: | 40 ~ 60 Bags Per Minute |
| Warranty: | 1 Year | Power: | 1.4Kw（220V） |
| Other Name: | Pyramid Tea Packing Machine | Advantage: | Long Service Life |
| High Light: | 20g Tea Bag Filling Machine,Ultrasonic Tea Bag Sealing Machine,1g Nylon Tea Bag Filling Machine |
||

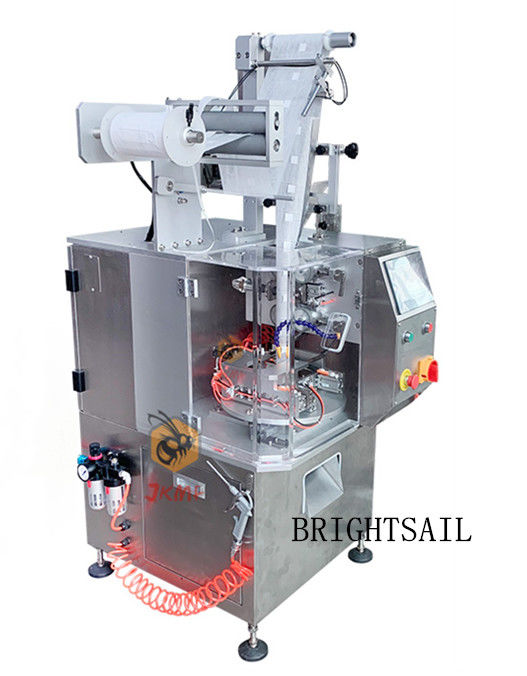

1 To 20g Per Bag Packing 40 To 60 Bags Per Minute Triangle Tea Bag Packing Machine
Main Usage Of Triangle Tea Bag Packing Machine:
The main application examples are: herbal tea, fruit tea, original tea, coffee, traditional Chinese medicine tea, granules and so on. It is very convenient to adjust, operate and maintain during use. It can be used in conjunction with a variety of different metering equipment.
Technical Data Of Triangle Tea Bag Packing Machine:
|
Packed weight
|
1-20 g/bag
|
|
Bag paper requirements
|
Nylon, non - woven fabric, corn fiber and other ultrasonic sealing materials
|
|
Production speed
|
40 ~ 60 bags per minute
|
|
Outer diameter of coil
|
≤Φ350㎜
|
|
Inner diameter of coil
|
Φ76㎜
|
|
Air pressure
|
Not less than or more than 0.6Mpa (air supply is guaranteed by the buyer)
|
|
Power
|
1.4Kw(220V)
|
|
Equipment form
|
L850×W900×H1700(㎜)
|
|
Weight
|
350kg
|
1.The contact part of the body material is stainless steel. All stainless steel or part of stainless steel can be selected. All equipment has passed the CE standard.
2.High-sensitivity photoelectric color tracking, digital input of cutting position, higher accuracy.
3.Embedded sealing, enhanced heat-sealing intelligent thermostat structure and good heat balance make it possible for various packaging materials to have good performance, low noise, clear cutting patterns, and strong sealing.
4.The packaging speed and the length of the packaging bag can be set to a certain extent, without further adjustment and replacement of parts.
Type of packing bag Of Triangle Tea Bag Packing Machine:
How Can I Buy This Machine?
First, discuss the details and prices of all the machines with our sales staff.
Secondly, confirm the price and terms of payment, trade guarantee / telegraphic transfer / escrow / Western Union remittance, etc.
Third, send us the purchase order, confirm our proforma invoice and arrange the deposit. Once we receive the deposit, we will arrange the production.
Finally, once the machine is ready, please help us arrange the balance. After receiving the balance, we will arrange the booking and send the machine to you.
