Product Details:
|
| Production Speed: | Wet Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Stirrer Speed (R.P.M): | 20-200 | Mixing Power (KW): | 5.5-30 |
| Cutting Knife Speed(R.P.M): | 50-3000 | ||
| High Light: | 22kw Rapid Mixture Granulato,Medical Wet Rapid Mixture Granulator,Conical Hopper Tank Rapid Mixture Granulator |
||
Work volume about 12 to 400L Mixing Granulator
Description:Medical Wet Mixing GranulatorMedical Wet Mixing GranulatorMedical Wet Mixing Granulator
BSSF Medical Wet mixing granulator is a new generation of granulating equipment developed by our company, which can finish the procedures of mixing, wetting, granulating in one time. Which is very effective and in compliance with GMP standard.
Principle:
The raw materials are added to the cylinder at one time, mixed or injected into the working container, and the raw materials and the adhesive are added to the working container at one time, and then mixed into a soft material, and then chopped into granules.
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.

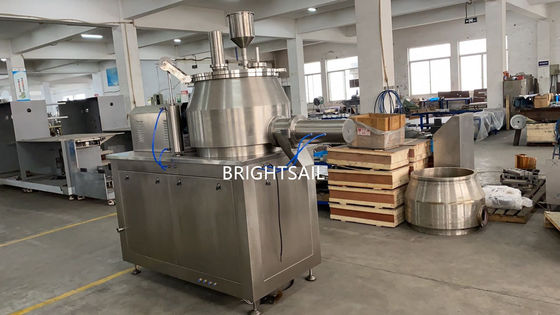

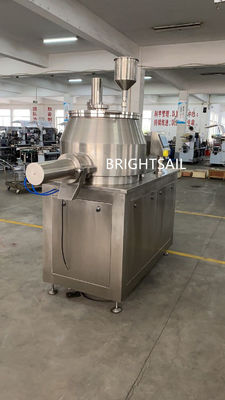

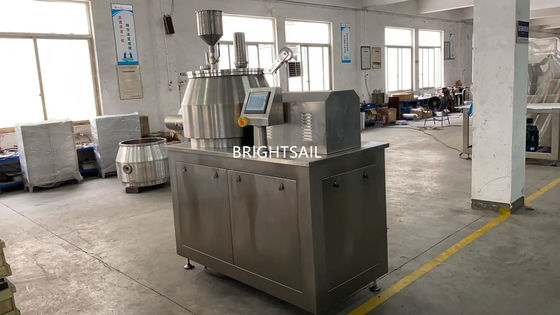

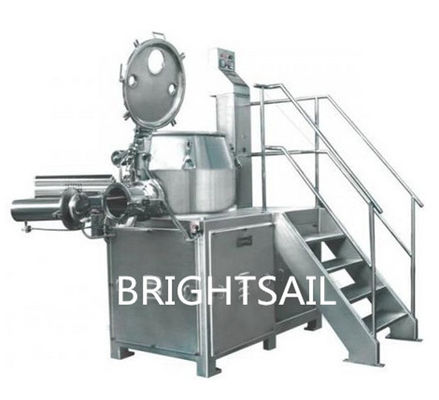

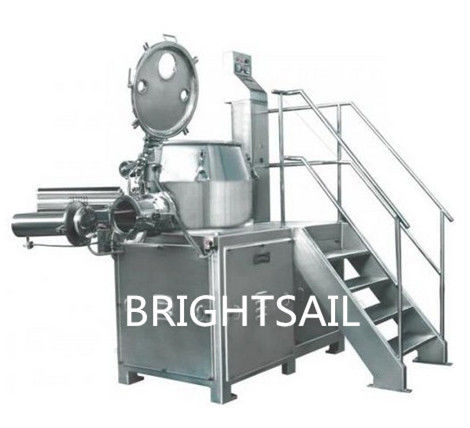

Detailed Images :
Features :
1. With consistent programmed technology (man-machine interface if option selected), the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2.Adopted frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3. With the rotating shaft hermetically filled with air, it can prevent all dusts from compact.
4. With a structure of conical hopper tank, all material can be in uniform rotation.
