Product Details:
|
| Production Speed: | Rapid Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Stirrer Speed (R.P.M): | 20-200 | Mixing Power (KW): | 5.5-30 |
| Cutting Knife Speed(R.P.M): | 50-3000 | ||
| High Light: | Volumetric Method Rapid Mixing Granulator,280L Rapid Mixing Granulator,Rapid Mixing Granulator For Crushing |
||

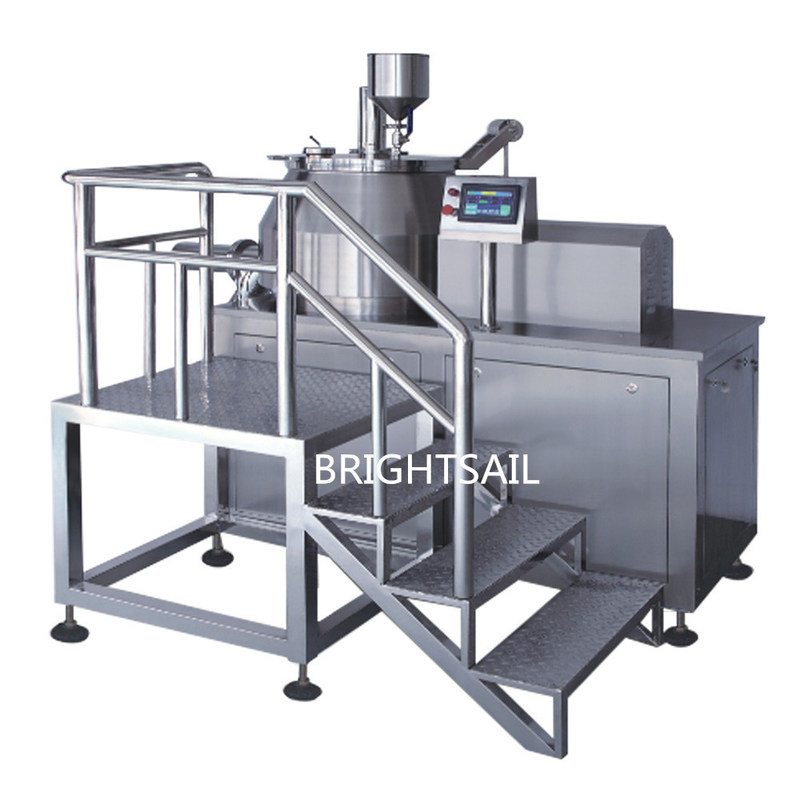

Work volume about 12 to 400L Rapid Mixing Granulator
Description:Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
These machines are suitable for crushing thermal sensitive material and granulating for damp material. It is less the heat and the powder dust. The sieve of stator is made of stainless steel plate. It is not easy to damage. The gap between crushing blade and sieve can be adjusted. Can treat material that is adhesive or in gum or heat or damp state.
Principle:Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator

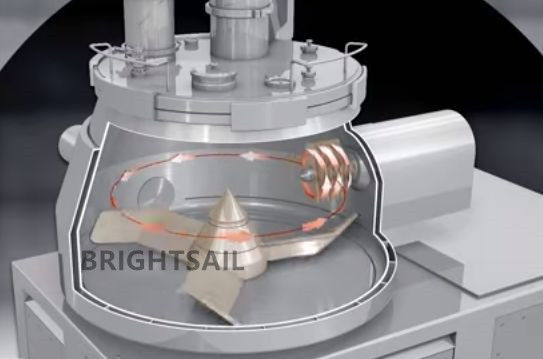

The powder material and the binder are thoroughly mixed into a wet soft material by a bottom mixing paddle in a cylindrical container, and then cut into uniform wet particles by a side-mounted high-speed pulverizing paddle.
Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
Detailed Images :
|

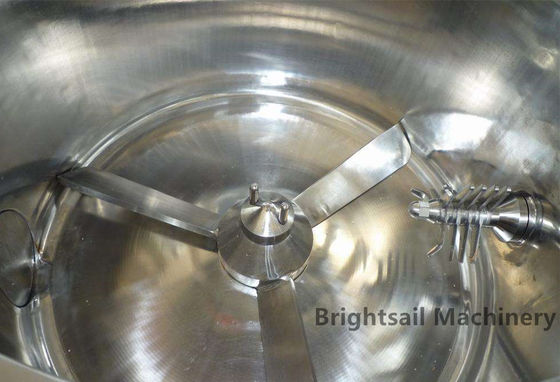

| Output Mixing Pot |
|
|
Mixing blade lifting system Cylinder for output easy for cleaning |
Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
Features :Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
1)It is the structure of horizontal cylinder (cone).
2) Full sealed driving shaft, to use water when cleaning.
3)Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4)Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5)Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
6)All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7)Whole operation has the strict safety precautions.
Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
