Product Details:
|
| Production Speed: | Rapid Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Stirrer Speed (R.P.M): | 20-200 | Mixing Power (KW): | 5.5-30 |
| Cutting Knife Speed(R.P.M): | 50-3000 | ||
| High Light: | Stainless Steel 304 Powder Milling Machine,100L Grinding Powder Milling Machine,CE Mixing Powder Milling Machine |
||

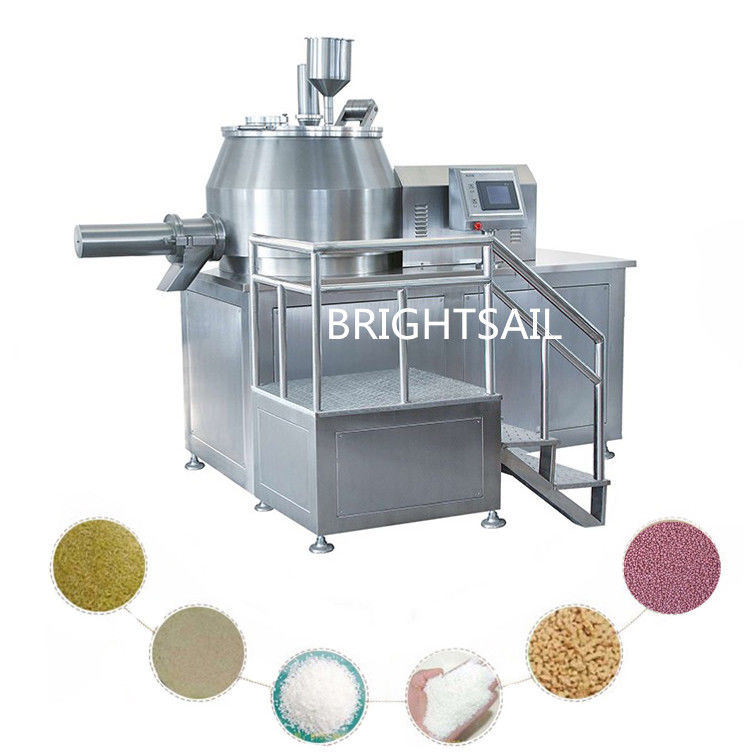

Work volume about 12 to 400L Grinding And Mixing Granulator
Description:Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
This Grinding And Mixing Granulator machine is composed of machine body, layered pot, pot lid, stirring paddle, cutting knife, discharge port, feeding device, flying knife drive, stirring drive, cooling system, automatic control system and so on.
Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
Principle:

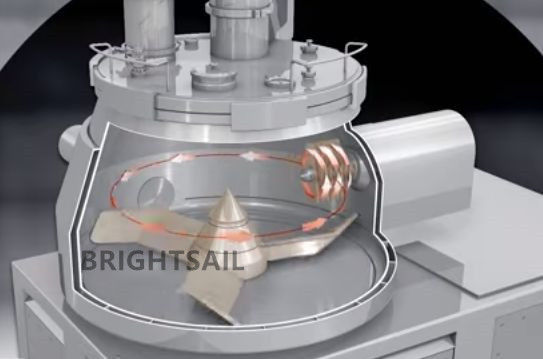

The machine uses layered pot as feeder, stirring rotation and cutting knife rotation as power. After the equipment is started, stirring the materials by the stirring paddle at the set speed, adding adhesives by the feeding device to make it roll and mix with the materials into granules in a short time, and then cut with a high-speed rotating cutting knife as a break, adjust and control the rotation speed of the stirring paddle and the cutting knife to obtain granules with different sizes, so that it becomes a granule that meets the requirements. Finally, open the discharging port and let it automatically discharging out of the pot.
Griding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator

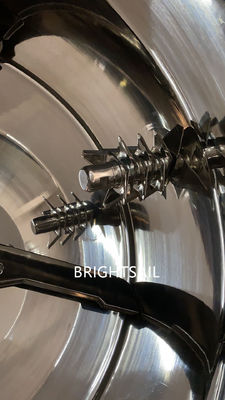

Detailed Images :
|

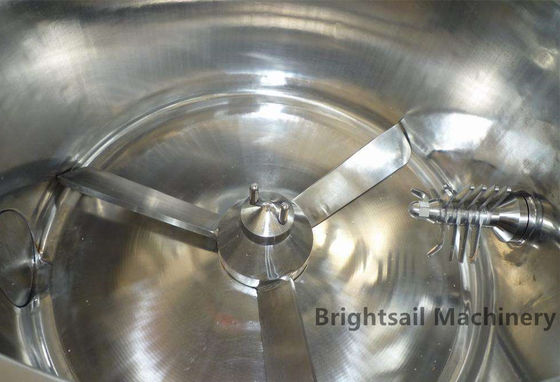

| Output Mixing Pot |
|
|
Mixing blade lifting system Cylinder for output easy for cleaning |
Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
Features :Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
1)It is the structure of horizontal cylinder (cone).
2) Full sealed driving shaft, to use water when cleaning.
3)Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4)Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5)Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
6)All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7)Whole operation has the strict safety precautions.
Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
