Product Details:
|
| Production Speed: | Rapid Mixing Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Stirrer Speed (R.P.M): | 20-200 | Mixing Power (KW): | 5.5-30 |
| Cutting Knife Speed(R.P.M): | 50-3000 | ||
| High Light: | Wet SS304 Rapid Mixer Granulator,400L Rapid Mixer Granulator,Automatic Control Rapid Mixer Granulator |
||
Work volume about 12 to 400L Wet Mix Granulator
Description:Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator

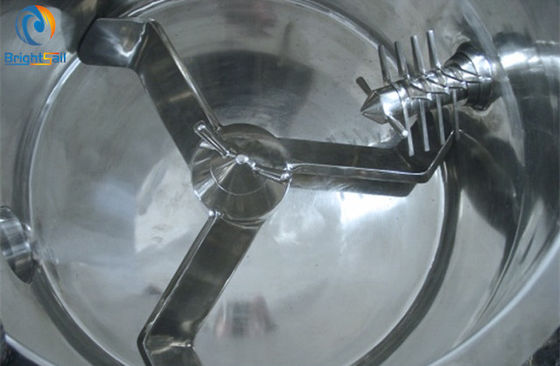

This Grinding And Mixing Granulator machine is composed of machine body, layered pot, pot lid, stirring paddle, cutting knife, discharge port, feeding device, flying knife drive, stirring drive, cooling system, automatic control system and so on.
Work process:
Performance:
1. With consistent programmed technology ( man-machine interface if option selected ) , the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2. Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3. With the rotating shaft hermetically filled with air, it can prevent all dust from compact.

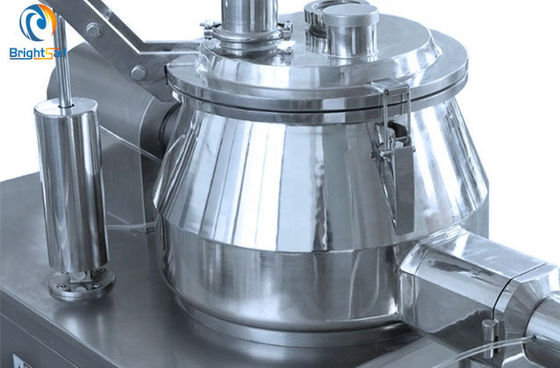

4. With a structure of conical hopper tank, all material can be in uniform rotation. The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.

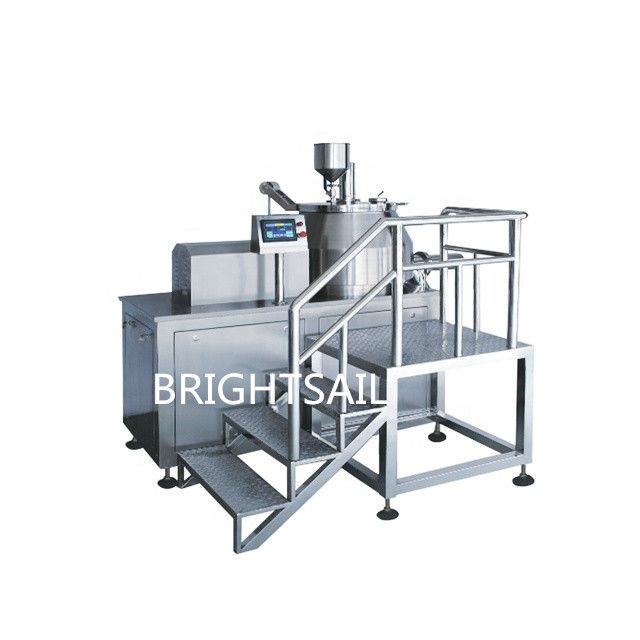

5. With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6. Lifting system with paddle is more beneficial to clean paddles and pot body.
wet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulator
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
wet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulator

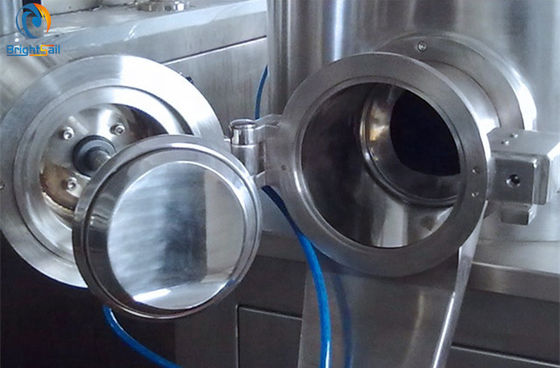

Detailed Images :
|
|
wet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulatorwet mixer granulator
