Product Details:
|
| Packaging Type: | Back Side Seal | Bag Type: | Back Side Seal Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Coding: | Yes | Packing Weight: | 10-5000g |
| High Light: | 5kg Cocoa Powder Packing Machine,ISO Cocoa Powder Packing Machine |
||
BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.cocoa powder packing machineprotein powder filling machinepowder milk packaging machine
Main features:
Simple construct, reliable circulator, easy maintenance.
The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature. Code.
Simultaneous control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter
cocoa powder packing machineprotein powder filling machinepowder milk packaging machine
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
cocoa powder packing machineprotein powder filling machinepowder milk packaging machine
Process flow diagram:
|
1. Material contact parts are all 304 materials
2. The spiral mold can be replaced to measure different weight specifications
Main control system:
1. One key adjustment of package weight on the touch screen
2. The bag making length is adjusted at any time on the touch screen
3. The display will show the packaging speed and the number of bags .
Auxiliary control:
1. Independent horizontal and vertical seal temperature control, convenient for adjustment
2. Set the start, stop and emergency stop switches for easy operation.
Cursor detection:
Detect the color code of roll film and control the bag length.
Ribbon printer:
1. Number of printing lines: 1-3 lines
2. Number of columns to be printed: up to 14 characters in a row
3. Particle size: 2 * 4mm
4. Preheating time: 5-10 minutes
|
cocoa powder packing machineprotein powder filling machinepowder milk packaging machine

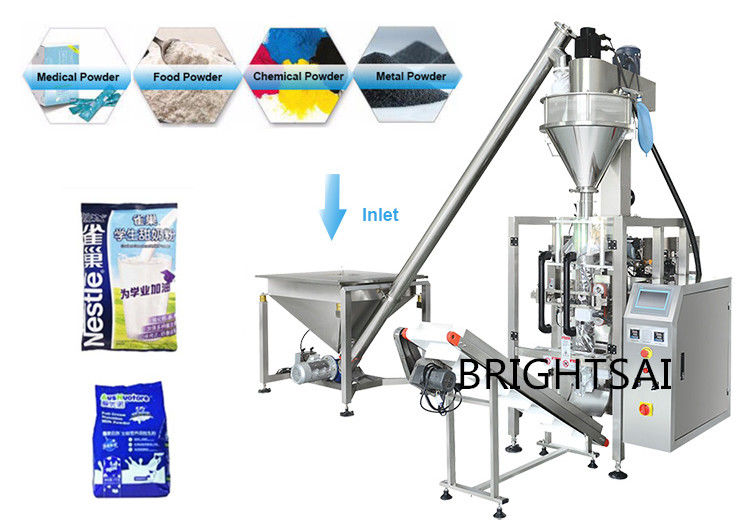

Application:
Relative devices:
please click the picture ,you can know more about the machines.
cocoa powder packing machineprotein powder filling machinepowder milk packaging machine
