Product Details:
|
| Product Name: | Powder Sachet Packing Machine | Bag Shape: | Back Sealing Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Packaging Weight Range (powder) (g): | 200-6000g |
| Packing Speed (bag /min): | 25-60 | Package: | Wooden Case Or Container |
| Another Name: | Sachet Filling Machine Powder | Advantage: | Efficient And Durable |
| High Light: | 500g Powder Sachet Packing Machine,Vffs Sachet Packing Machine |
||
100 To 6000g Packing Weighr Range Vffs Vertical Powder Sachet Packing Machine
Product introduction of powder sachet packing machine:
BSPM filling machine powder can do quantitative and filling work. Due to its special design, it is suitable for filling most powder and small particle materials.
Application scope of powder sachet packing machine:
Main Features of powder sachet packing machine:
1. Chinese and English screen display, Operation Example
2. PLC computer system, function more stable, adjust any parameters without shutdown
3. It can store ten sets of parameters and simply change the breed.
4. Servo motor drawing film, accurate positioning.
5.Temperature Independent Control System, accuracy up to 1 degree.
6, Horizontal, vertical temperature control, suitable for all kinds of mixed film, Pe Film Bag, etc. .
Technical data of powder sachet packing machine:
|
Models
|
BSPM-320
|
BSPM-420
|
BSPM-520
|
BSPM-620
|
BSPM-720
|
BSPM-820
|
|
Bag size(mm)
|
W:50-150
L:50-200 |
W:80-200
L:80-250 |
W:100-250
L:100-300 |
W:120-300
L:120-350 |
W:150-350
L:150-400 |
W:200-400
L:200-450 |
|
Bag Shape
|
Back Seal
|
|||||
|
Power(kw)
|
2.5
|
3.5
|
||||
|
Packaging weight range (powder) (g)
|
≤200
|
≤500
|
≤1500
|
≤3000
|
≤4000
|
≤6000
|
|
Packing speed (bag /min)
|
25-60 (according to material characteristics and packing weight)
|
|||||
|
Packaging Accuracy
|
±1% (according to material characteristics and packing weight)
|
|||||

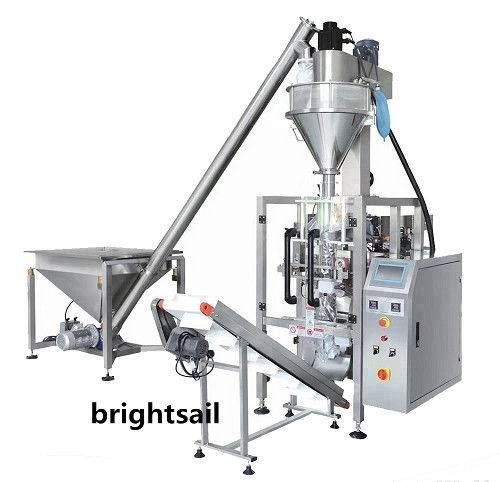

Appearance of powder sachet packing machine:

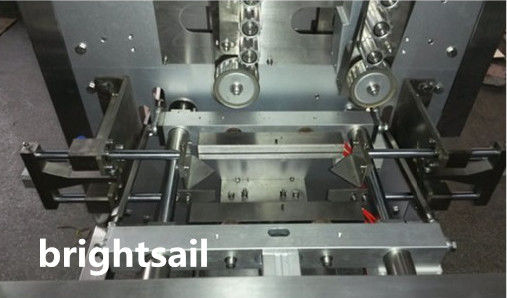

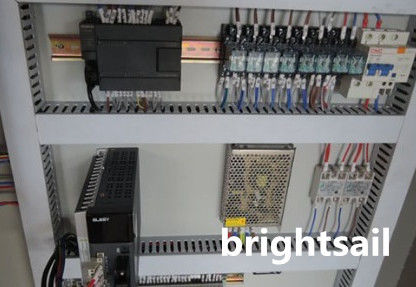

Detailed Images of powder sachet packing machine:
Applicatioon of Chili Powder Packing Machine:
(Other types of packing machine.if you have any interests,click on title to know more)
