Product Details:
|
| Packaging Type: | Back Side Seal | Bag Type: | Back Side Seal Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Coding: | Yes | Packing Weight: | 10-5000g |
| High Light: | 100g Spice Powder Filling Machine,1300mm Spice Powder Filling Machine,Solid Beverage Filling Packing Machine |
||
Packing Weight 10g 5kg spice powder filling machine

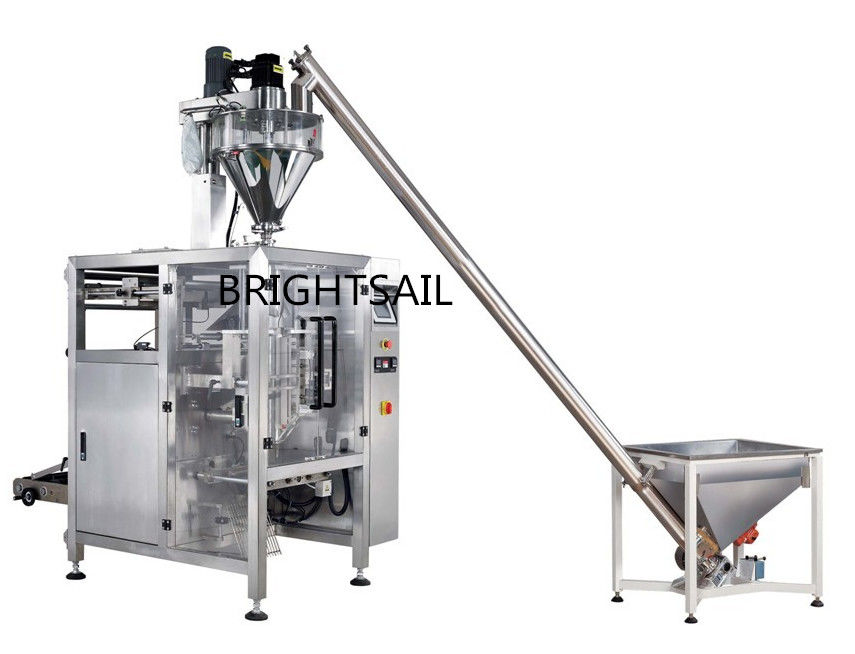

BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
spice powder filling machinespice powder filling machinespice powder filling machine
Main features:
Simple construct, reliable circulator, easy maintenance.

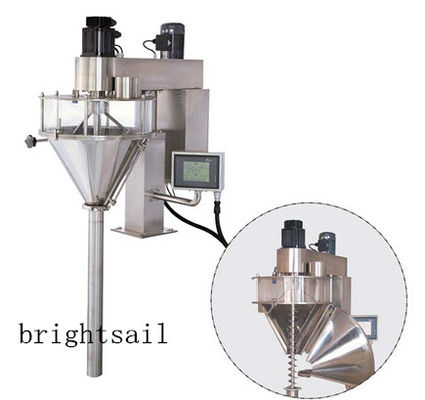

The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature. Code.
Simultaneous control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter
spice powder filling machinespice powder filling machinespice powder filling machine
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
spice powder filling machinespice powder filling machinespice powder filling machine
Process flow diagram:
Application:
Relative devices:
please click the picture ,you can know more about the machines.
spice powder filling machinespice powder filling machinespice powder filling machine
