Product Details:
|
| Product Name: | Packing Machine Detergent Powder | Other Name: | Packing Powder Machine |
|---|---|---|---|
| Hopper Volume: | 3.6/10L | Packing Accuracy: | ≤1-2g |
| Hopper Size: | 645*645mm | Pack Speed: | 12-16/24-32bags Per Min |
| Motor: | 3.5kw | Advantage: | Fast Speed |
| High Light: | 3kg Filling Packing Machine,80 Bags/Min Filling Packing Machine,CE Detergent Powder Filling Packing Machine |
||
50 To 3000g Packing Weight 15 To 80 Bags Per Min Packing Machine Detergent Powder
Product Description: Of Packing Machine Detergent Powder
1. Chinese and English screen display, easy to operate.
2. PLC computer system, more stable function, no need to stop to adjust any parameters.
3. Bag making, sealing, packaging and date printing can be completed at one time.
4. The working environment is quiet and the noise is low.
Features: of Packing Machine Detergent Powder
1. The packaging machine for powder is configured according to the conventional bagging process. The whole production process is highly automated and meets the GMP health standard;
2. Suitable for loose, cohesionless and fine materials;
3. The supporting machines of this equipment are all made of stainless steel except the materials indicated. All the machine structures are selected and designed according to the food hygiene standards;
4. The material of container contacting with material is SUS304;
5. The structures that are often disassembled and cleaned are all connected by easily detachable parts to ensure convenient handling and sanitation when moving or replacing products;
6. The normal production of the equipment needs 1-2 people.
Technical data:of Packing Machine Detergent Powder
|

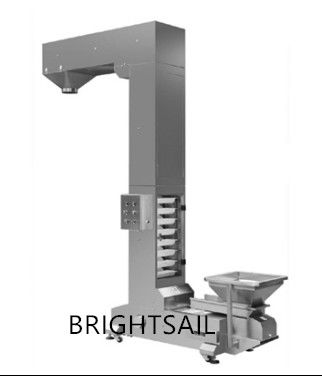

Z shape conveyor |
|
|
Frame
|
stainless steel 304
|
|
Hopper
|
PP
|
|
Hopper volume
|
1.8L
|
|
Conveying speed
|
5.5m3/h
|
|
Hopper size
|
645*645mm
|
|
Height
|
3700mm
|
|
Motor
|
0.75KW
|
|
Hopper Weighing Scale |
||
| Weighing hopper | 4 | 2 |
| Feed method | double vibrating | |
| Measuring method | electronic weighing feedback | |
| Packing weight | 50-1000g | 50~3000g |
| Packing accuracy | ≤1-2g | |
| Pack speed | ~24-32 bags/min | ~12-16 bags/min |
| Power | 1P/220V/50HZ | |
| Motor | 1.0KW | |
| One hopper volume | 3.6L | 10L |
| remark | We have more models if you need. | |
| Working platform | |
| Size |
2000*2000*1800mm |
| Material | SS304 |
| Remark | This size is only for reference,can be customized |
|
BSPM vertical packing machine |
||
| Model | BSPM-520 | BSPM-720 |
| Film width | 520 | 720 |
| Bag length | 100~300 mm | 150~400 mm |
| Bag width | 100~250 mm | 150~300 mm |
| Pack speed | 20~80 bags/min | 15~18 bags/min |
| Motor | 3.5KW | 3.5KW |
| Remark | We have more models to satisfy your needs | |
| Belt conveyor | |
| Belt width | 300mm |
| Discharging Height | 900mm |
Application: of Packing Machine Detergent Powder
(click on the titie below to know more types of packing machines)
BSPM-A100 big powder packing machine
