Product Details:
|
| Packaging Type: | Back Side Seal | Bag Type: | Back Side Seal Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Coding: | Yes | Packing Weight: | 10-5000g |
| High Light: | 5kg Flour Filling Packing Machine,380V Filling Packing Machine,Three Phase Pouch Packing Machine |
||
Packing Weight 10g 5kg packing machine flour
BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
powder filling machine 1000gpacking machine flourautomatic powder filling and sealing machine
Main features:
1) Material conveying, measuring, filling, bag-making, date-printing, finished product outputting are all completed automatically.
2) High measuring accuracy and efficiency.
powder filling machine 1000gpacking machine flourautomatic powder filling and sealing machine
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
powder filling machine 1000gpacking machine flourautomatic powder filling and sealing machine
Detail images:
 |

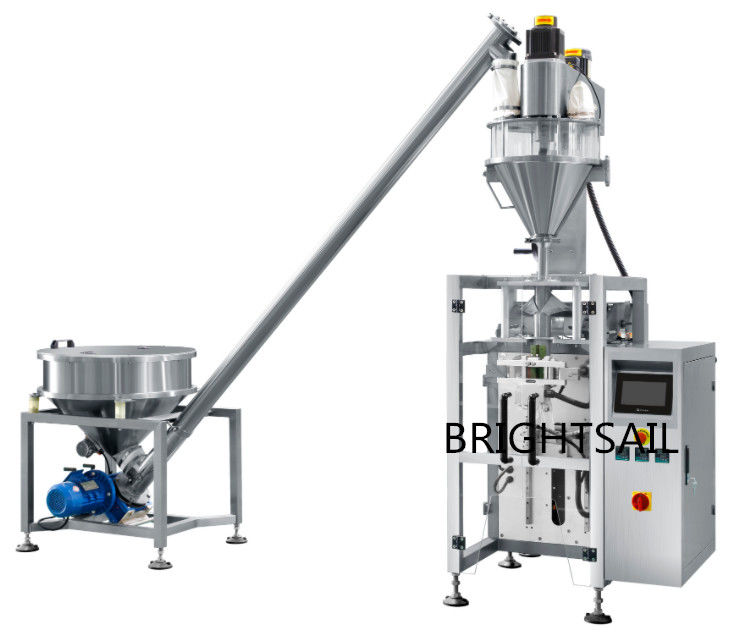

1.Vertical packing machine

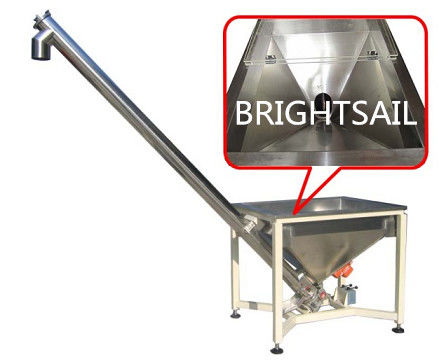

2.Screw conveyor.
It is for conveying powder to auger filler.

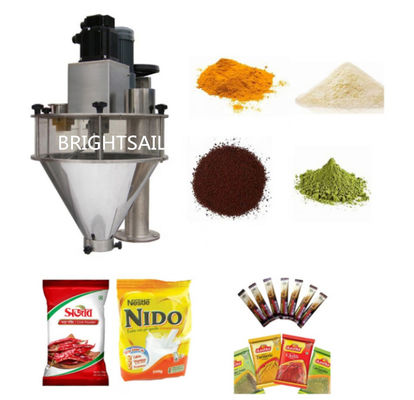

3.Augre filler
4.Take -off Conveyor
|
Application:
Relative devices:
please click the picture ,you can know more about the machines.
