Product Details:
|
| Product Name: | Doypack Powder Filling Machine | Bag Shape: | Back Sealing Bag |
|---|---|---|---|
| Power(kw): | 2.2/3.5 | Advantage: | Full Automatic |
| Weight Range: | 100-6000g | Certification: | CE ISO |
| Other Name: | Jaggery Powder Packing Machine | ||
| High Light: | Doypack Powder Filling Machine,6000g Powder Filling Machine,60 Bags/Min Powder Packaging Machine |
||

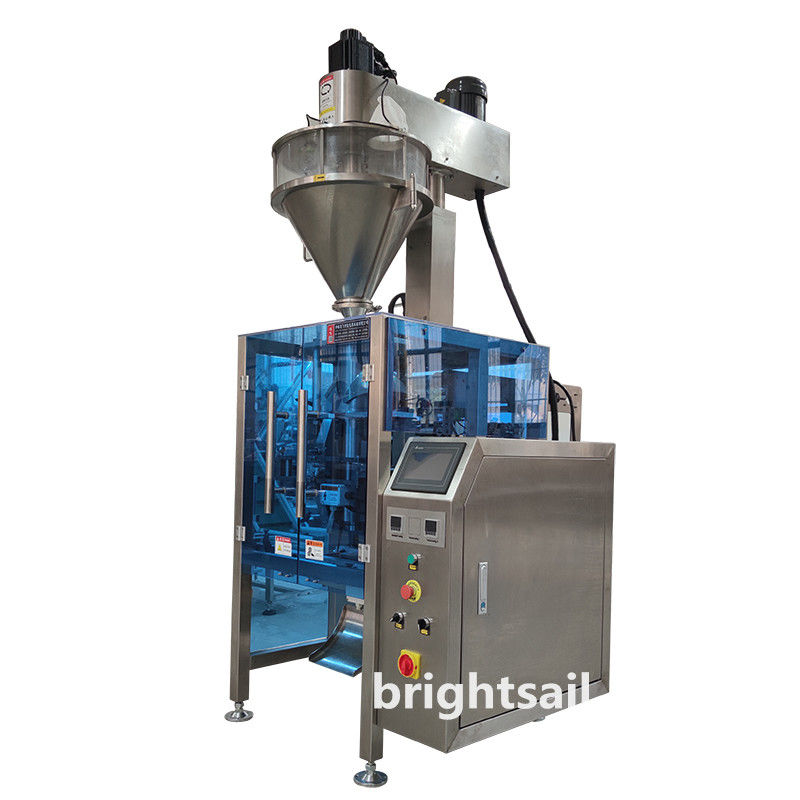

200 To 6000g Weigh Range 25 To 60 Bags Per Min Doypack Powder Filling Machine
Product introduction: of doypack powder filling machine:
BSPM vertical powder packing machine is suitable for automatic packing of flour, sugar, milk powder, monosodium glutamate, condiment, food additive, pesticide, washing powder, health tea powder, Chinese medicine powder, etc. . The machine is suitable for quantitative filling and packing of compound flavoring, natural flavoring, food additive, flavor flavor, flour, milk powder, protein powder, solid beverage, sugar, monosodium glutamate, pesticide, veterinary medicine, washing powder, enzyme preparation, feed additive, chemical industry and new building materials.
Features: of doypack powder filling machine:
1. the machine is novel in design and beautiful in appearance. The structure is perfect and the technology is advanced.

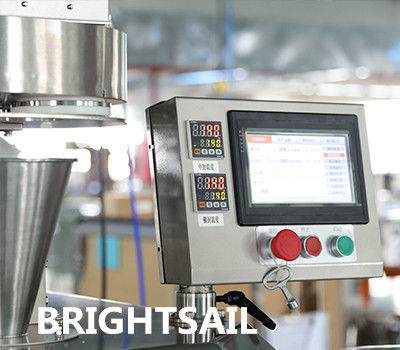

2. famous PLC computer control system and color touch screen control board. Make the operation simpler and more efficient.
3. automatic alarm device is set to greatly reduce the loss.
4. the imported servo motor film pulling system, with the control of the electric eye sensor, has higher precision and better performance, making the bag shape more perfect.
Technical data:of doypack powder filling machine:
|
Models
|
BSPM-320
|
BSPM-420
|
BSPM-520
|
BSPM-620
|
BSPM-720
|
BSPM-820
|
|
Bag size(mm)
|
W:50-150
L:50-200 |
W:80-200
L:80-250 |
W:100-250
L:100-300 |
W:120-300
L:120-350 |
W:150-350
L:150-400 |
W:200-400
L:200-450 |
|
Bag Shape
|
Back Seal
|
|||||
|
Power(kw)
|
2.5
|
3.5
|
||||
|
Packaging weight range (powder) (g)
|
≤200
|
≤500
|
≤1500
|
≤3000
|
≤4000
|
≤6000
|
|
Packing speed (bag /min)
|
25-60 (according to material characteristics and packing weight)
|
|||||
|
Packaging Accuracy
|
±1% (according to material characteristics and packing weight)
|
|||||
Details: of doypack powder filling machine:
1. Running membrane structure: multi connected structure, stable running performance of roll membrane.
2. Spiral packing measurement: eliminate spiral packing and ensure high precision measurement (error within 1%)
3. Double membrane structure: double membrane structure makes the process of bag making smooth.

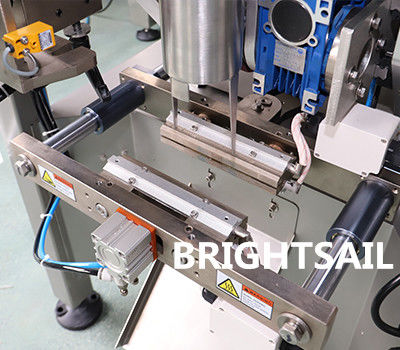

4. Pneumatic cutting system: stable pneumatic cutting system, with photocell, accurate positioning bag cutting.
Application:of doypack powder filling machine:
(Click on the title below to take you to learn more about other types of packaging machines)
Welcome to call us for consultation!
BSPM-F vertical powder packing machine
Big fine powder packing machine
