Product Details:
|
| Product Name: | Packing Machine Packaging | Bag Shape: | Back Sealing Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Packaging Accuracy: | ±1% (according To Material Characteristics And Packing Weight) |
| Weight Range: | 100-6000g | Certification: | CE ISO |
| Another Name: | Custard Powder Packing Machine | Other Name: | Coffee Powder Stick Packing Machine |
| High Light: | 6000g Small Powder Packing Machine,200g Small Powder Packing Machine,iso Small Powder Packing Machine |
||
25 To 60 Bags Per Min 200 To 6000g Weighing Range Packing Machine Packaging
Introduction:Packing Machine Packaging

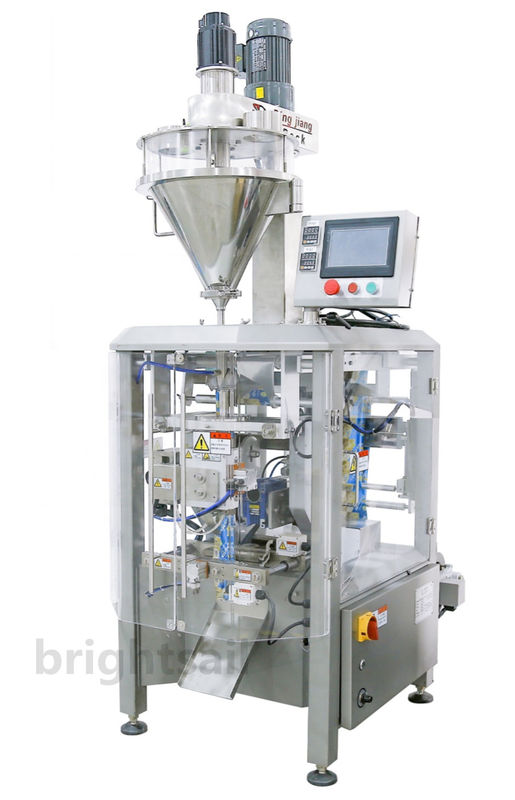

Dession powder packing machine is suitable for ultra-fine powdery materials such as flour,milk powder,soy flour and spices powder etc.
According to customer needs,can offer different bag styles.such as pillow bag,back sealed bag with hole,gusseted bag and gusseted bag with hole hanging.
Main Features:Packing Machine Packaging
1. The whole machine is made of all stainless steel or part of stainless steel, and all the factory equipment has passed the CE standard.
2. The computer controller is the first patent in China; both the inverter and power switch adopt advanced imported technology.
3. The screen display in Chinese and English can be selected, and the operation is simple and convenient.
4. High-sensitivity photoelectric color display and digital input cutting position, higher accuracy.
5. Embedded sealing, heat-sealing intelligent thermostat with strengthened structure and excellent heat balance make all kinds of packaging materials possible, with good performance, low noise, clear cutting pattern and strong sealing.
6. The packaging speed and bag length can be set to a certain extent, without further adjustment and replacement of parts. The packaging speed and bag length can be set to a certain extent, without further adjustment and replacement of parts.
7. Equipped with a cup-rolling device, the packaging volume can be changed at any time, reducing loss and improving production efficiency. 8. Special output alarm function; automatic display of packaging speed.
9. Optional coding equipment and 1 to 3 lines of batch number and expiration date.
10. Automatic direct connection bag making, filling, sealing, slitting, counting, batch number hot pressing.
11. Changing the cutter can realize flat cutting, die cutting, combined cutting, easy to operate, and the bag surface is smooth.
12. The bag making equipment can be replaced according to the specific requirements of customers and products
Technical Data:Packing Machine Packaging
|
Models
|
BSPM-320
|
BSPM-420
|
BSPM-520
|
BSPM-620
|
BSPM-720
|
BSPM-820
|
|
Bag size(mm)
|
W:50-150
L:50-200 |
W:80-200
L:80-250 |
W:100-250
L:100-300 |
W:120-300
L:120-350 |
W:150-350
L:150-400 |
W:200-400
L:200-450 |
|
Bag Shape
|
Back Seal
|
|||||
|
Power(kw)
|
2.5
|
3.5
|
||||
|
Packaging weight range (powder) (g)
|
≤200
|
≤500
|
≤1500
|
≤3000
|
≤4000
|
≤6000
|
|
Packing speed (bag /min)
|
25-60 (according to material characteristics and packing weight)
|
|||||
|
Packaging Accuracy
|
±1% (according to material characteristics and packing weight)
|
|||||
Packing Machine Packaging
(Click on the title below to take you to learn more about other types of packaging machines)
Welcome to call us for consultation!
BSPM-F vertical powder packing machine
Big fine powder packing machine
