Product Details:
|
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Bag Type: | Pillow Bag,Stand Pouch |
|---|---|---|---|
| Packing Accuracy: | ≤1‰ | Measure Method: | By Auger Weighing |
| Machine Size: | 1000*1000*2300 | Feed Type: | Double Screw |
| Other Name: | Coffee Spices Powder Filling Machine | Product Name: | 25kg Powder Pack Machine |
| High Light: | 150L Filling Packing Machine,25kg Filling Packing Machine,Auger Filling Packing Machine |
||
5 To 50kg Weigh Range Measure By Auger 150L 25kg Powder Pack Machine
Introduction:25kg Powder Pack Machine
BSPM-A100 ginger powder packing machine can complete bag making, weighing, filling, nitrogen filling, date coding, bag dividing and other functions. It is suitable for packing milk tea, monosodium glutamate, solid beverage, sugar, glucose, coffee, feed, solid medicine, powder additive, dye and other powder granular materials.
1kg bspm-a100 flour packaging machine adopts PLC servo system, pneumatic control system and super touch screen to form the drive control center, which improves the control accuracy, reliability and intelligent level of the whole machine to the maximum.
Main Features:25kg Powder Pack Machine
1. Equipped with safety protection, in line with the company's safety management requirements.
2. Adopt intelligent temperature controller, the temperature is accurate, ensure that the seal is beautiful and clean.
3. PLC SERVO system, pneumatic control system and super touch screen drive control center are adopted to maximize the control accuracy, reliability and intelligence of the whole machine.
4. The touch screen can store the technical parameters of various products without resetting when replacing them.
5. There is an error indicator system to help deal with the failure in a timely manner.
6. Pillow bags and hanging bags can be made according to different requirements of customers.
Technical Data:25kg Powder Pack Machine
| Model | BSPM-A100 |
| Feed type | double screw |
| Measure method |
by auger weighing |
| Weigh range |
5~50 KG |
| Packing accuracy |
≤1‰ |
| Pack speed |
2~4 bags/minute |
| Hopper size |
150L |
| Motor | 2 kw |
| Machine size |
1000*1000*2300 |
| Remark |
when pack 4~10 kg bags, accuracy is ±10g |

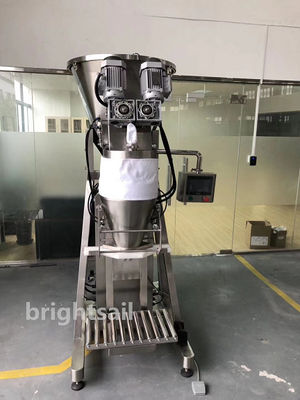

Appearance:25kg Powder Pack Machine

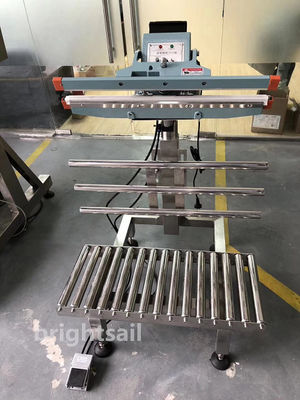

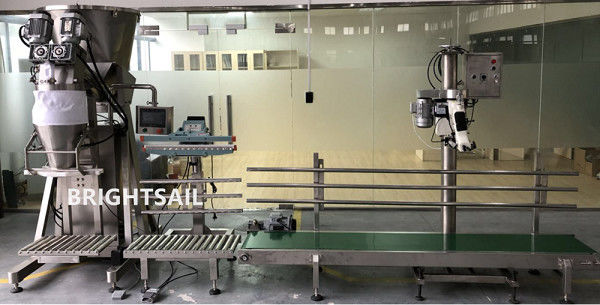

Detaied Images:25kg Powder Pack Machine
Application:
(We also can provide with other types of packing machines to meet your different requirements.
Click on the title to take you to learn more about these machines)
BSPM-B100 fine powder packing machine
BSPM vertical powder packing machine
Triangle teabag filling mahcine
