Product Details:
|
| Packaging Type: | Back Side Seal | Bag Type: | Back Side Seal Bag |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Coding: | Yes | Packing Weight: | 10-5000g |
| High Light: | 5kg Pepper Powder Packing Machine,10g Pepper Powder Packing Machine,ODM Pepper Powder Packing Machine |
||

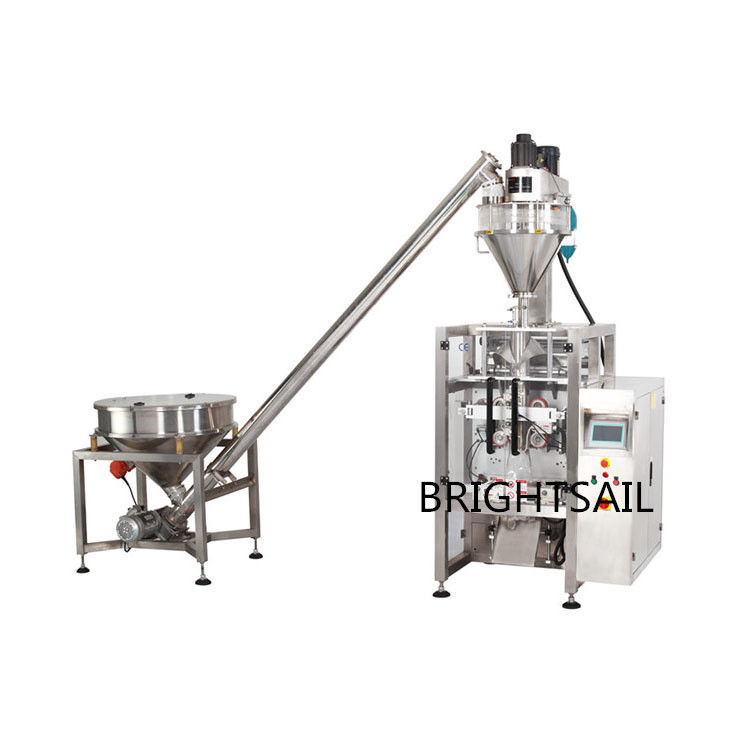

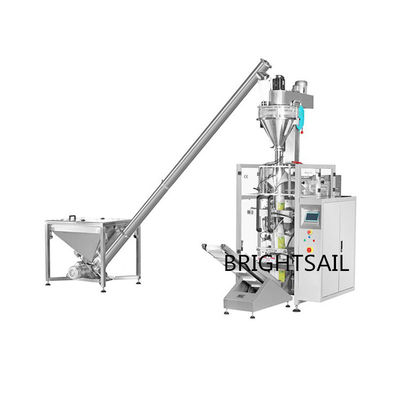

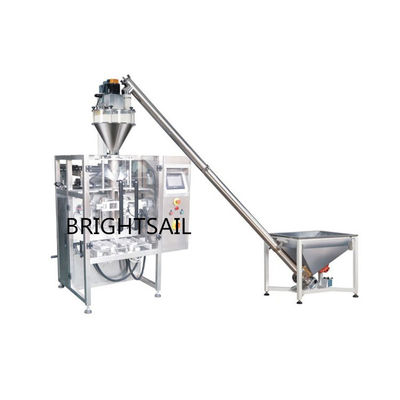

BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
Main features:
1. Entire machine design is more optimized for more convenient operation.
2. Compact machine structure for more stable working.
3. SS304 machine frame with sand blasted treatment realizes nice appearance.
4. Key components are specially designed, fast packing speed.
5. Servo controlling system: Intelligent adjustment with higher accuracy is more
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
Process flow diagram:
|
Film loader
Servo film-pulling and film-loading assembly, with dancing arm moves up and down, realizing dynamic control of the film tension. Film travels above eye mark sensor, realizing precise film tracking and positioning.
Bag former
Drawn down by servo drive friction
pull-down belt, packing film enters to
bag former, realizing nice and neat
packaging performance. With user-
friendly design, it is easy to change the
bag former ffor different film width.
Mid sealing assembly
Cylinder control mid sealing assembly, with independent temperature control, realizing precise and nice sealing appearance.
End sealing assembly
Servo control end sealing jaws move
in open-close motion, with independent
temperature control. Heated sealing
jaws will make top seal of one bag and
bottom seal of next bag at the same
time. Then Finished pillow bag will be
discharged.
Intuitive HMI display
Different settings for set up,
commissioning, daily operation and maintenance can be conducted via the touch screen. With memory function, easy for different packing size change over.
|
Application:
