Product Details:
|
| Product Name: | Rice Husk Grinder Machine | Input Size: | <15mm |
|---|---|---|---|
| Capacity: | 20-1800kg/h | Discharge Motor: | 0.75-1.5kw |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Other Name: | Oat Mill | Advantage: | Powder Can Be Super Fine And Even |
| High Light: | 15mm input rice husk grinder,20kg/h rice husk grinder,CE ISO passed rice husk grinder |
||
20 To 1800kg Per Hour Capacity 60 To 2500mesh Fineness Rice Husk Grinder Machine
Main usage:rice husk grinder machine
This bran crushing machine is consisted of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Technical data:rice husk grinder machine
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:rice husk grinder machine
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement. That's why it can make super fine powder and can be used as a Fine powder grinder (Fine powder mill)
Advantages:rice husk grinder machine
1. Compact design and reasonable structure. There is a grading mechanism inside the material, so that grinding and grading can be carried out at the same time, which reduces energy consumption.
2. The machine is equipped with a fan to continuously dissipate heat, which is suitable for the grinding of heat-sensitive materials.
3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Adjust the speed or air volume of the classifier without stopping the machine, and you can get a uniformly distributed product with the required particle size.
5. The top cover of the main unit is opened by a pneumatic spring. The structure of the main body is such that it can be opened to both sides, so that there will be no obstacles when cleaning and repairing internal parts.
6. The main grinding parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of worn parts.
7. The bearing system adopts imported high-speed precision bearings, the whole machine runs smoothly, with low vibration and noise.
8. The pipeline has a quick disassembly and assembly structure, which is convenient and quick to disassemble and clean.
9. Equipped with cyclone separator and dust collector, no dust will be generated during the production process. The dust collecting bag can effectively collect the fine powder in the airflow, thereby meeting the clean and environmental protection requirements of exhaust gas emission.
10. The fine powder collected by the dust bag can be effectively recycled. Thereby reducing material loss.
Grinding effect:rice husk grinder machine

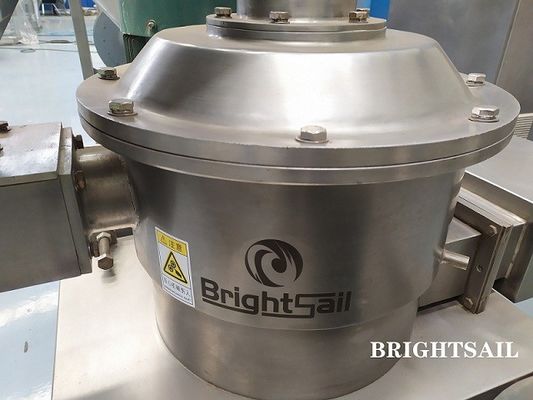

Detailed images:rice husk grinder machine
