Product Details:
|
| Product Name: | Rice Husk Crushing Mill | Power(kw): | 4-22 |
|---|---|---|---|
| Feed Size: | <10mm | Output Size: | 10-120 Mesh |
| Capacity: | 20-800 Kg/h | Overall Size(L*W*H)(mm): | Customized |
| Advantage: | Small Floor Area | Other Name: | Rice Husk Flour Machine |
| High Light: | 20 mesh food powder machine,120 mesh food powder machine,iso passed food powder machine |
||

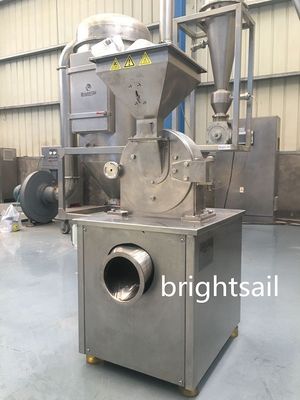

20 To 120 Grinding Fineness 20 To 150kg Per Hr Capacity Rice Husk Crushing Mill
BSU rice husk flour grinder is widely used in food, medicine, chemical and other industries. Suitable for grinding of dry and friable materials. Materials with low softening point and high viscosity are not suitable for use on this machine.
The whole rice husk crusher is made of stainless steel. Through processing, the inner surface of the shell becomes smooth, thus changing the former model due to rough inner surface caused by residual powder phenomenon. So that the production of drugs, food, chemical products more in line with National Standards and GMP requirements.
Technical Data:rice husk crushing mill
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 | 900 |
Working Method:rice husk crushing mill
This rice husk grinder makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.
Since it features a simple structure, firm and stable operation and good crushing effect, the crushed materials can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.
Main Features:rice husk crushing mill
1. Simple linear structure, convenient installation and maintenance.
2. There is water cooling jacket around the grinding chamber.
3. Pneumatic, electrical and operating components are all world famous advanced components.
4. We have different kinds of knives, so you can choose different materials.
If you are looking for small sugar mill, salt mill, salt mill, pharmaceutical mill, salt mill, our BSU is very suitable.

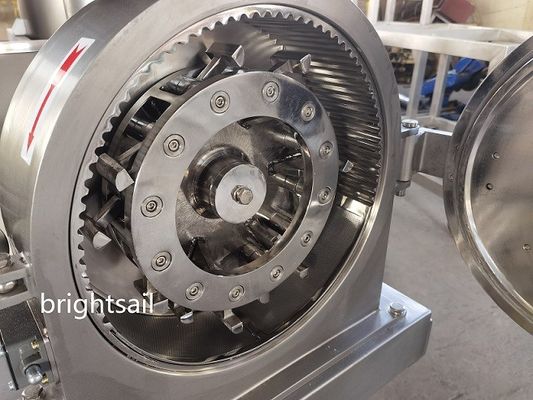

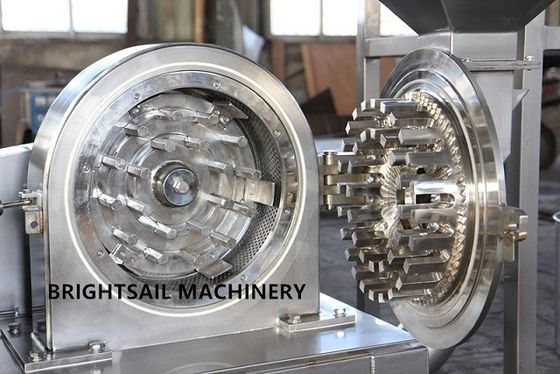

Different Grinding Parts:rice husk crushing mill
