Product Details:
|
| Product Name: | Cassia Powder Pulverizer | Capacity: | 100-2000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Other Name: | Cinnamon Grinder |
| Discharge Motor: | 0.75-1.5kw | Blower: | 7.5-18.5 Kw |
| Advantage: | High Stability,easy To Operate | Grinding Material: | Turmeric,chili,checkpea,cinnamon... |
| High Light: | 20 mesh powder pulverizer machine,120 mesh powder pulverizer machine,cassia powder pulverizer machine |
||

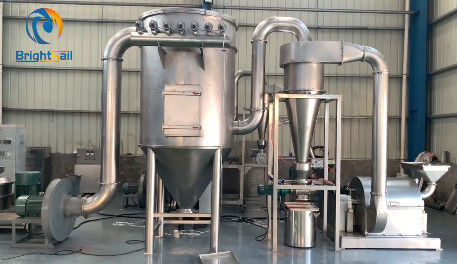

20 To 120 Mesh Powder Fineness 100 To 2000kg Capacity Cassia Powder Pulverizer
Introduction:cassia powder pulverizer
BSDF cinnamon machine is the latest product of our company, specially designed for crushing spices. It has three milling areas: Rough Milling area, middle milling area and fine milling area,It means the material will be ground three times at the same time. BSDF hammer mill is suitable for grinding all kinds of materials, such as spices, leaves, chickpeas, Gum Arabic, grains, animal feed, etc. .
Technical data:cassia powder pulverizer
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Working method:cassia powder pulverizer
The material is fed into the grinding chamber and rotated at high speed by three groups of knives in turn. The material is ground three times in a mill and then turned into fine powder. In order to ensure the fineness of powder, a device is designed between the medium and fine grinding groups to prevent coarse particles from entering the fine grinding area. The rotor speed is controlled by the frequency converter, and different granularity can be realized by adjusting the speed. There is no screen in the mill, so the heat rising in the mill is very small.
Advantages:cassia powder pulverizer
(1) There is no need to screen or sieving in the mill, and the powder particle size can be changed by variable speed;
(2) Because there is no sieve in the mill, there is no heat rise in the mill when grinding; there is no need to worry about the power in the screen or the quality of the product being affected , The heat from the rolling mill. This is why it is very suitable for grinding heat-sensitive materials or materials containing fiber or oil.
(3) The mill part is a combination of coarse pulverizer, medium-fine pulverizer and fine pulverizer, which can directly obtain fine powder from large raw materials, which is very effective.
(4) It can save more power, and its production capacity is far greater than other traditional mills of the same motor type.
Main structure:cassia powder pulverizer
(1) the base: plays the connection and the support crusher each component is an integral whole function. The crushed material is discharged from one side of the crushing chamber.
(2) Rotor: It is composed of main shaft, Hammer frame, shaft pin, Hammer head, bearing, etc. . It is the main moving part of the crusher. Rotor speed is high, after assembly must be carried out dynamic balance test, no shaft pin and Hammer.
(3) upper cover: upper side with feed hole, made of semi-circular gear. The crushing chamber consists of an upper cover, a lower cover and a rotor. The material is crushed in the crushing chamber.
(4) lower cover: there are discharge holes on the side. Inner Ring Gear, main shaft, Hammer frame, Hammer head, fan blade, classification wheel. The shell is divided into blowing zone, fine crushing zone, grading zone, secondary crushing zone and coarse crushing zone.
Crushing Part:cassia powder pulverizer
Crushing Effect:cassia powder pulverizer
