Product Details:
|
| Product Name: | Flour Mill For Seeds Cake | Advantage: | With Two Crushing Discs |
|---|---|---|---|
| Application: | Food, Chemical, Medical,etc | Capacity: | 60-700 Kg/h |
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| Other Name: | Machine To Grind Seeds Cake | ||
| High Light: | 40 mesh flour mill machine,1000 mesh flour mill machine,60kg per hour flour mill equipment |
||
40 To 1000 Mesh Powder Fineness 60 To 700kg Per Hour Capacity Flour Mill For Seeds Cake
Description:flour mill for seeds cake

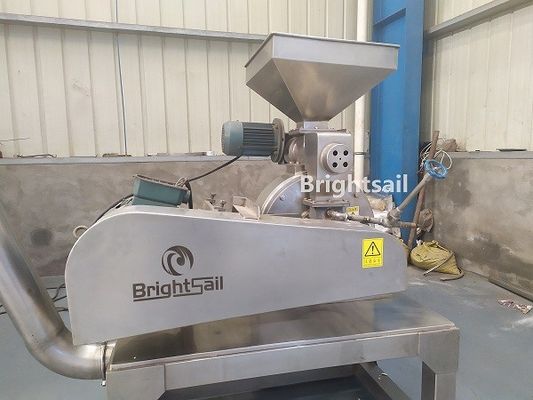

BSZ grinding machine is specialized in processing all kinds of fruits, spices, walnuts, coffee beans, cocoa beans, rice and other food and chemical raw materials. The special milling machine for agricultural products, oil products and chemical raw materials has been developed by introducing foreign technology after years of practice. This product meets the food hygiene standards, easy to operate, low noise. It is suitable for enterprises to process all kinds of food and chemical raw materials.
Technical data:flour mill for seeds cake
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 |
8400 |
Working method:flour mill for seeds cake

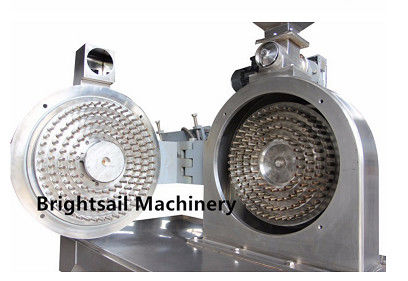

The two-way grinding wheel rotates in the opposite direction to improve the grinding effect. The syringes with different diameters are set on the disk wheels on both sides, and each section of the needle bar is reasonably arranged through three-dimensional simulation technology. It can effectively control the gap of the material in the pinhole and achieve the effect of cracking. The needle rod can be divided into hexagon, square, spear and so on. It has special effect on high melting point engineering plastics and normal temperature ball milling.
Main features:flour mill for seeds cake
1. Simple liner structure for easy installation and maintenance.
2. It has two grinding wheels that rotate on each other to achieve high speed rotation.
3. Grinding Chamber does not need to screen, you can change the speed to change the particle size.
4. Can Be made into very fine powder. Cocoa powder grinding cocoa, coffee, spices, dried fruit and other high sugar content or high oil content of materials, grinding effect is good.
Crushing effect:seeds cake pulverizing machine
