Product Details:
|
| Warranty: | One Year | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Blower(kw): | 4-15 | Product Name: | Chili Powder Grinder Machine |
| Other Name: | Chili Powder Grinding Machine | ||
| High Light: | 50kg/h chilli powder grinding machine,5000kg/h chilli powder grinding machine,10 mesh chilli grinding machine |
||
50 To 5000kg Per Hr 10-120 Mesh Powder Fineness Chili Powder Grinder Machine
Product introduct:chili powder grinder machine

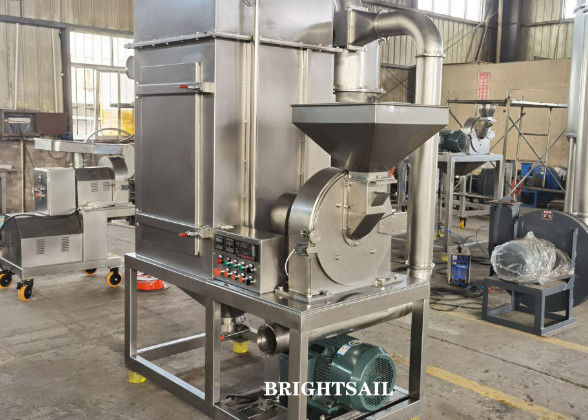

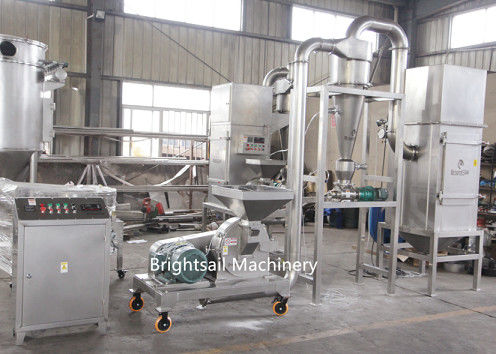

This machine is our company BSG series self-suction pulverizer, with a complete grinding system (pulverizer, dust collector, cyclone separator) . The machine is widely used in food, chemical and other industries. This machine is very suitable for grinding crystal materials, such as grinding 1-2 tons of sugar powder per hour. Suitable for grinding leaves, grain, chemical powder, etc. . With the dust removal system, the powder dust will be collected in cloth bags, which is more environmentally friendly to the industry.
Technical data:chili powder grinder machine
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:chili powder grinder machine
The product enters the grinding chamber through the hopper. Under the impact of high-speed rotating grinding disc / hammer, the product is thrown into the fixed gear ring, and then bounced and sheared. At the same time, under the impact, cutting and friction of rounds, the material has been well micronized. Under the negative pressure of the fan and impeller, the powder is absorbed into the cyclone separator and discharged through the screen and pipeline. The pulse dust collector also collects some micro powder dust.
Main Features:chili powder grinder machine
(1) The grinding chamber is equipped with a water cooling system to effectively avoid damage to your products caused by high temperature during the grinding process.
(2) Unique impeller design, the air flow generated during the grinding process will bring the final powder product out of the grinding chamber together with hot air. No blocks/jam.
(3) The screen is made of high-quality stainless steel. Special design. When you need powder of another mesh size, you can easily change the mesh.
(4) Excellent cyclone powder discharge system, the powder discharge motor automatically rotates the powder discharge device to discharge the powder you want evenly, so that the powder discharge is stable without dust flying.
(5) The machine is also equipped with a dust removal system, which is used to collect the fine powder inevitably produced during the grinding process into the dust collector, so that the final powder discharge of the automatic rotating powder discharge device is more uniform.
(6) All stainless steel structure, in line with GMP standards, in line with food-grade, chemical-grade, and pharmaceutical-grade standards.

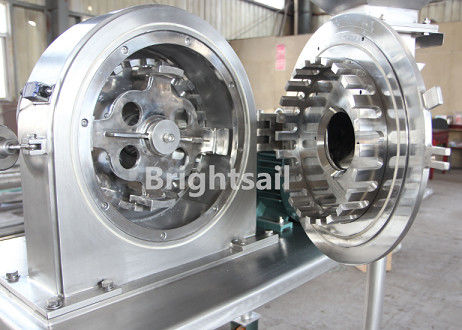

Crusher part:chili powder grinder machine
Crushing Effect:
