Product Details:
|
| Capacity: | 50-5000kg/h | Fineness: | 10-120 Mesh |
|---|---|---|---|
| Material: | SS304/316 | Blower(kw): | 4-15 |
| Product Name: | Herbal Medicine Grinder | Other Name: | Equipments Of Traditional Chinese Medicine |
| Another Name: | Medicine Grinder | Advantage: | Functional |
| High Light: | ss316 herbal medicine grinder,5000kg/h herbal medicine grinder,120 mesh grinder for herbal medicine |
||
Industrial Large-Scale 50 To 5000 Kg Per Hr Capacity Herbal Medicine Grinder
Product introduct:herbal medicine grinder
Technical data:herbal medicine grinder
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:herbal medicine grinder
Main Features:herbal medicine grinder
(1) The grinding chamber is equipped with a water cooling system, which can effectively avoid damage to your products due to excessive temperature during the grinding process.
(2) Unique impeller design, the air flow generated during the grinding process will bring the final powder product out of the grinding chamber together with hot air. No blocks/jam.
(3) The screen is made of high-quality stainless steel. Special design. When you need a powder with another mesh, you can easily change the mesh.

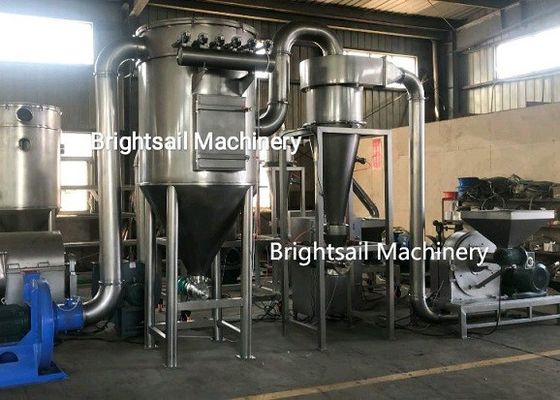

(4) Excellent cyclone powder discharge system, powder discharge motor automatic rotating powder discharge device, uniform powder discharge, stable powder discharge, no dust flying.
(5) This machine is also equipped with a dust removal system, which is used to collect the fine powder inevitably produced during the grinding process into the dust collector, so that the final powder discharge of the automatic rotating powder discharge device is more uniform.
(6) All stainless steel structure, in line with GMP standards, in line with food-grade, chemical-grade, and pharmaceutical-grade standards.
(Split type) (Joint type)

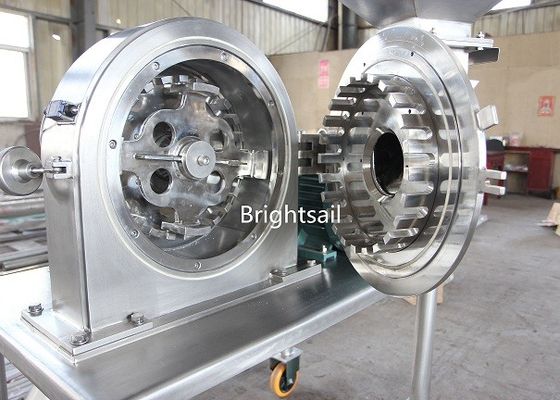

Crusher part:herbal medicine grinder
