Product Details:
|
| Capacity: | 50-5000kg/h | Fineness: | 10-120 Mesh |
|---|---|---|---|
| Material: | SS304/316 | Blower(kw): | 4-15 |
| Product Name: | Medicinal Herbs Grinding Machine | Other Name: | Pulverizer Grinder Machine Herbal Medicine |
| Another Name: | Herbal Medicine Pulverizer | Advantage: | Large Capacity And Good Fineness |
| High Light: | ss316 herbs grinding machine,5000kg/h herbs grinding machine,self priming herbs grinding machine |
||

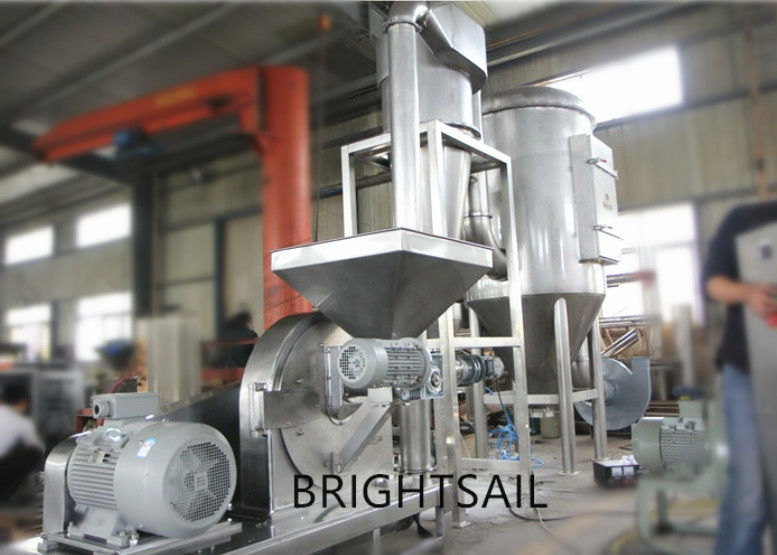

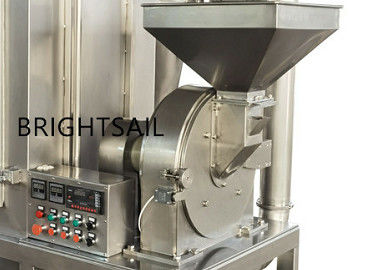

12 To 120mesh Grinding Fineness SS316 Medicinal Herbs Grinding Machine
Product introduct:Medicinal Herbs Grinding Machine
Technical data:Medicinal Herbs Grinding Machine
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:Medicinal Herbs Grinding Machine
Main Features:Medicinal Herbs Grinding Machine
(1) The grinding chamber is equipped with a water cooling system, which can effectively avoid damage to your products due to excessive temperature during the grinding process.
(2) Unique impeller design, the air flow generated during the grinding process will bring the final powder product out of the grinding chamber together with hot air. No blocks/jam.
(3) The screen is made of high-quality stainless steel. Special design. When you need a powder and another sieve, you can easily replace the sieve.

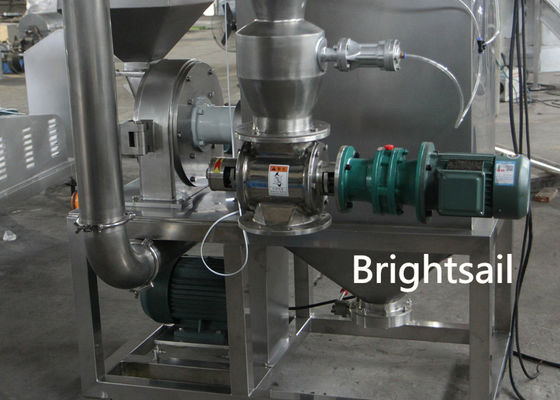

(4) Excellent cyclone powder discharge system, automatic rotating powder discharge device of powder discharge motor, uniform powder discharge, stable powder discharge, and no dust flying.
(5) This machine is also equipped with a dust removal system, which is used to collect the fine powder inevitably produced during the grinding process into the dust collector, so that the final powder discharge of the automatic rotating powder discharge device is more uniform.
(6) All stainless steel structure, in line with GMP standards, in line with food-grade, chemical-grade, and pharmaceutical-grade standards.
(Split type) (Joint type)
Crusher part:Medicinal Herbs Grinding Machine
