Product Details:
|
| Capacity: | 50-5000kg/h | Fineness: | 10-120 Mesh |
|---|---|---|---|
| Material: | SS304/316 | Blower(kw): | 4-15 |
| Product Name: | Chili Grinder | Other Name: | Chili Powder Making Machine |
| Another Name: | Chili Powder Mill | Advantage: | Different Crushing Parts Can Be Chosen |
| High Light: | food industry chilli grinding mill machine,50kg/h chilli grinding mill machine,chilli powder making machine 5000kg/h |
||
Food Industry 50 To 5000kg Per Hr Large Capacity Chili Grinding Machine
Product introduct:chili grinder
Technical data:chili grinder
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:chili grinder
Main Features:chili grinder
(1) The grinding room is equipped with water cooling system to effectively avoid damage to your product caused by excessive temperature during grinding.
(2) With the unique impeller design, the air flow generated in the grinding process will bring the final powder product out of the grinding chamber together with hot air. No pieces / jam.
(3) The screen is made of high-quality stainless steel. Special design. When you need a powder and another sieve, you can easily change the sieve.

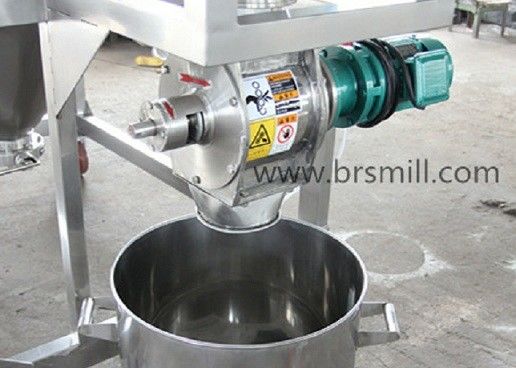

(4) Excellent cyclone powder discharge system, automatic rotation of powder discharge motor and powder discharge device, uniform powder discharge, stable powder discharge and no dust flying.
(5) The machine is also equipped with a dust removal system, which is used to collect the fine powder inevitably generated in the grinding process into the dust collector, so as to make the final powder discharge of the automatic rotary powder discharge device more uniform.
(6) All stainless steel structure, in line with GMP standards, food grade, chemical grade and pharmaceutical grade standards.

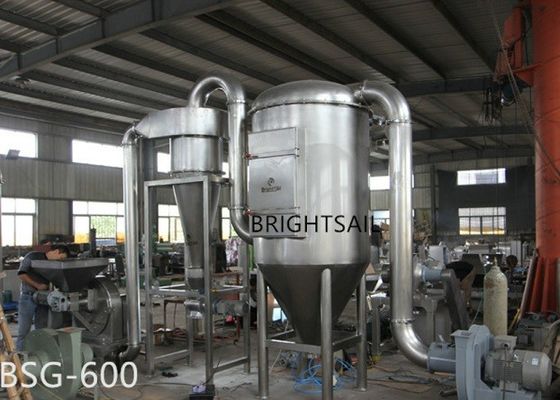

(Split type) (Joint type)

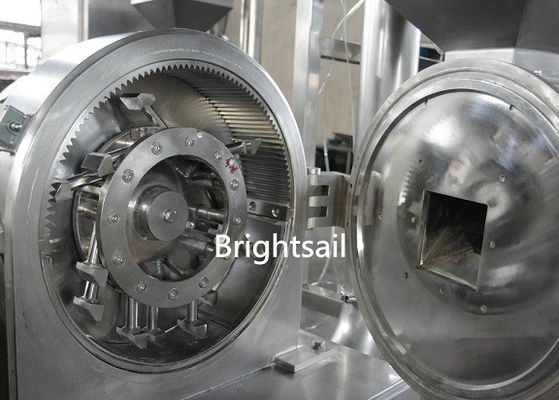

Crusher part:chili grinder
Crushing Effect:
