Product Details:
|
| Product Name: | Coconut Crushing Machine | Certification: | CI |
|---|---|---|---|
| Material: | SS 304/316 | Maximum Capacity: | 1800 Kg/h |
| Input Size: | <15mm | Application: | Food,chemical,pharmaceutical,etc |
| Fineness(mesh): | 60-2500 | Raw Materials: | Herb,sugar,spice,ginger,rice... |
| Another Name: | Coconut Cutter | Other Name: | Coconut Crusher Machine |
| High Light: | foodstuff industry coconut processing machine,60 mesh fineness coconut processing machine,2500 mesh fineness coconut processing equipment |
||
Foodstuff Industry Widely Used 60-2500 Mesh Fineness Coconut Processing Machine
Product Descriptioncoconut processing machine

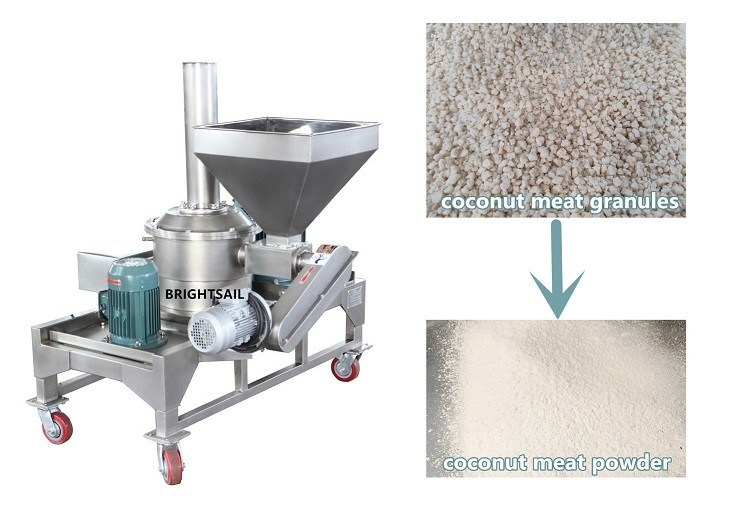

BSP coconut grinding machine consists of crusher, cyclone separator, dust collector, blower and electric control box. It has the functions of screening, no screening, uniform particle size, and continuous processing.
It adopts the world's advanced famous-brand motors, electrical components, bearings and operating components to reach the international advanced level. It is suitable for the crushing of materials in the pharmaceutical, chemical, food and other industries.
Technical datacoconut processing machine
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working methodcoconut processing machine
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation,both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.
Main componentscoconut processing machine
1) The utility model has the advantages of simple structure and convenient installation and maintenance.
2) There is no dust in the production process, and the dust can be collected in the dust collection box.
3) The particle size can be changed with the speed without screening; The particle size ranges from 80 mesh to 500 mesh.
4) Around the grinding chamber and bearing, there is a water-cooling jacket to cool the machine.
Details
about crusher part:
(1) The left motor is crush motor;
(2) the right motor is classfifier motor.
(3) It adopts a small screw feeder, make sure feed speed is even and controllable.
In order to better grind the material into fine powder, it is usually recommended to grind the material into small particles with BSC coarse crusher in advance.If you are interested in this primary mill,click here.
