Product Details:
|
| Warranty: | One Year | Maximum Capacity: | 5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Blower(kw): | 4-15 | Product Name: | Licorice Powder Making Machine |
| Other Name: | Liquorice Grinder | Finished Product: | Fine Powder |
| Pre-sale Service: | Provide | After-sale Service: | Provide |
| High Light: | 5000kg per hr powder making machine,large capacity licorice powder making machine,50kg per hr powder milling machine |
||

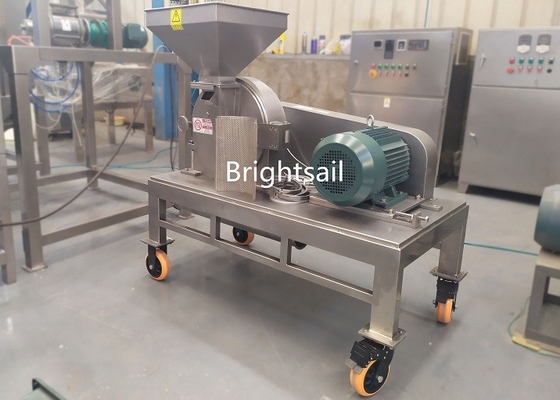

Customized 50 To 5000kg Per Hr Large Capacity Licorice Powder Making Machine
Product introduct:licorice powder making machine
Our BSG series self-absorb grinding machine is widely used in food, chemical and other industries. This machine is suitable for grinding crystal materials, such as 1-2 tons of sugar powder per hour. Suitable for grinding leaves, grain, chemical powder, etc. . Dust removal system is adopted to collect the powder dust in the cloth bag, which is more environmental friendly to the industry.
Technical data:licorice powder making machine
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:licorice powder making machine
The product enters the grinding room through the hopper. Under the impact of a high-speed rotating grinding disc/hammer, the product is thrown into a fixed ring gear and bounced and cut. At the same time, under the impact, cutting and friction of the round plate, the material has been fine-grained. Under the negative pressure of the fan and impeller, the powder is absorbed into the cyclone separator and discharged through a screen and pipe. The pulse duster also collects some dust.
Features:licorice powder making machine
1. The grinding room is equipped with a water cooling system to effectively avoid damage to your product caused by high temperature during grinding. 2. Unique impeller design, the air flow generated in the grinding process will bring the final powder product out of the grinding chamber together with hot air. No pieces / jam.
3. The screen is made of high-quality stainless steel. Special design. When you need another mesh of powder, you can easily change the mesh.
4. Excellent cyclone powder discharge system, powder discharge motor, automatic rotation powder discharge device, uniform powder discharge, so that the powder discharge is stable without dust flying.
5. The machine is also equipped with dust removal system, which is used to collect the fine powder inevitably generated in the grinding process into the dust collector, so as to make the final powder discharge of the automatic rotary powder discharge device more uniform.
6. All stainless steel structure, in line with GMP standards, food grade, chemical grade and pharmaceutical grade standards.

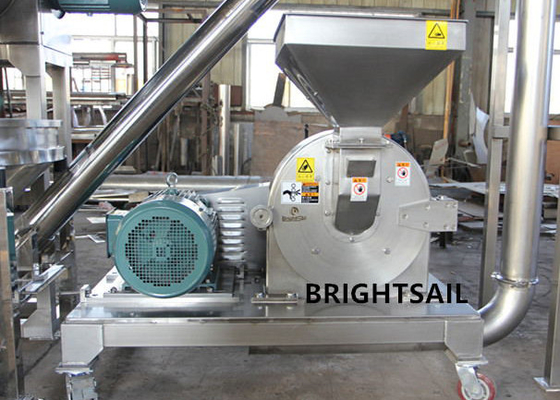

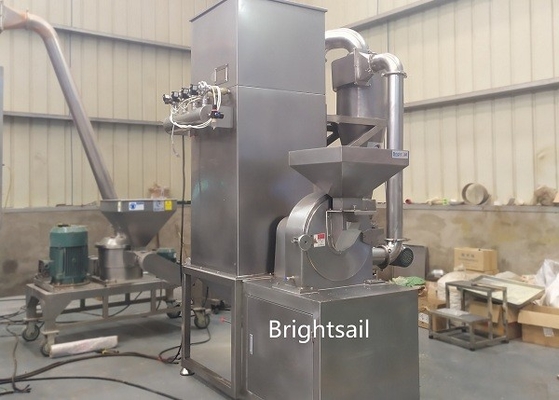

Crusher part:licorice powder making machine
Crushing Effect:licorice powder making machine
