Product Details:
|
| Certification: | CE, ISO | Maximum Capacity: | 50-5000kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | Stainless Steel 304/316 |
| Crusher Motor(kw): | 5.5-30 | Product Name: | Licorice Pulverizer Mill |
| Other Name: | Liquorice Mill | Finished Product: | Fine Powder |
| Pre-sale Service: | Factory Visit | After-sale Service: | Video Support |
| High Light: | licorice pulverizer powder milling machine,roots powder milling machine,powder milling machine 5000kg/h |
||
Roots Grinder Machine 50 To 5000kg Per Hr Output Licorice Pulverizer Mill
Product introduct:licorice pulverizer mill
Our BSG series grinding machine can be widely used in many different fields,such as chemical,medicine,foodstuff industries...
It is specially suitable for crystal materials grinding,such as sugar,salt...and its capacity can be 2-3 times bigger than traditional universal crusher.
Technical data:licorice pulverizer mill
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:licorice pulverizer mill
The product enters the grinding chamber through the hopper. Under the impact of the high-speed rotating grinding disc/hammer, the product is thrown into the fixed ring gear and bounces away from the cut. At the same time, under the impact, cutting and friction of the circular plate, the particle size of the material is fine. Under the negative pressure of the fan and the impeller, the powder is absorbed into the cyclone separator and discharged through the screen and the pipe. The pulse dust collector will also collect some dust.
Features:licorice pulverizer mill
1. Grinding room is equipped with water cooling system to effectively avoid damage to your products caused by high temperature in the grinding process.
2. Unique impeller design, the airflow generated during the grinding process will bring the final powder products and hot air out of the grinding chamber. No fragmentation/blocking.
3. The screen is made of high quality stainless steel. Special design. You can easily change nets when you need another fan.

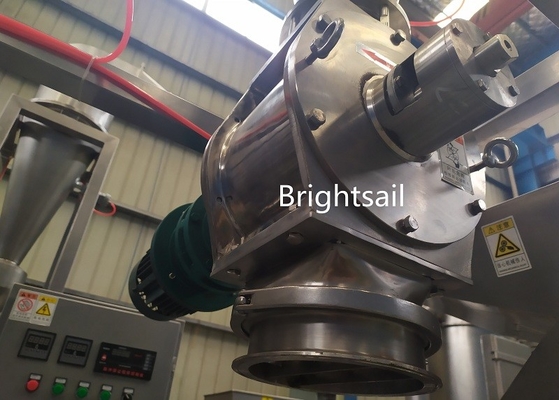

4. Excellent cyclone discharging system, discharging motor and automatic rotating discharging device, ensure discharging powder evenly, stable, no dust flying.

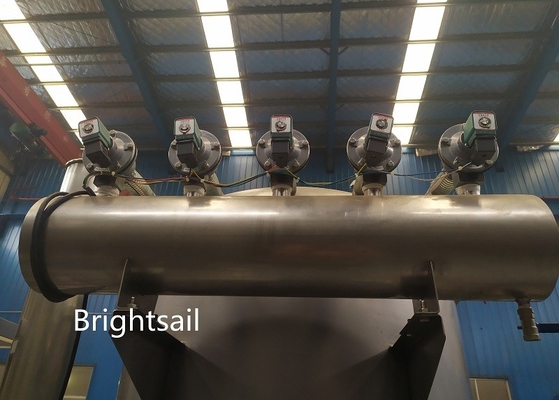

5. The machine is also equipped with dust removal system, which is used to collect the fine powder inevitably generated in the grinding process into the dust collector, so that the final discharge of the automatic rotating powder discharging device is more uniform.

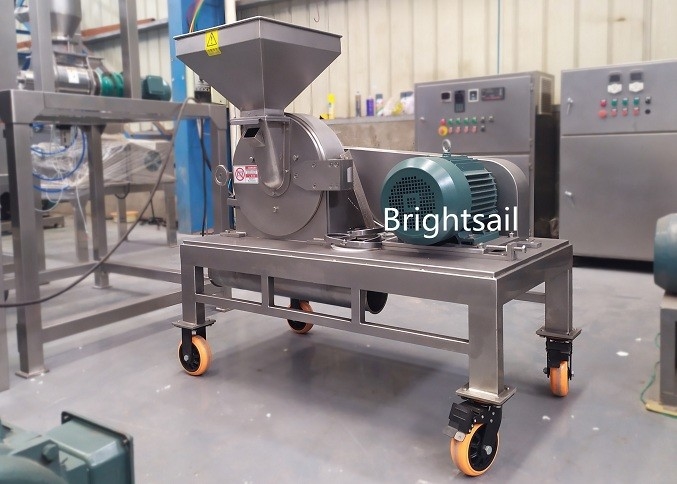

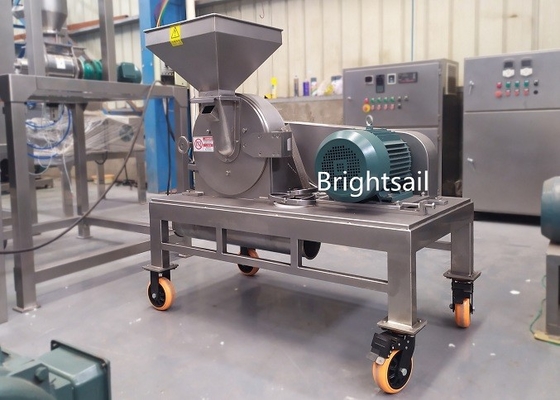

Crusher part:licorice pulverizer mill
Crushing Effect:licorice pulverizer mill
