Product Details:
|
| Product Name: | Cortex Cinnamomi Grinding Machine | Finished Product: | Cortex Cinnamomi Powder |
|---|---|---|---|
| Applicated Materials: | Cinnamon,chili,dry Leaf,licorice... | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Pre-sales Services: | Inquiry And Consulting Support With 24 Hours; Machine Sample Test Service; Factory Visit | After-sales Services: | One Year Warranty; Video Support |
| High Light: | 10mm spice powder machine,seasoning processing spice powder machine,cortex cinnamomi grinding spice pulverizer |
||

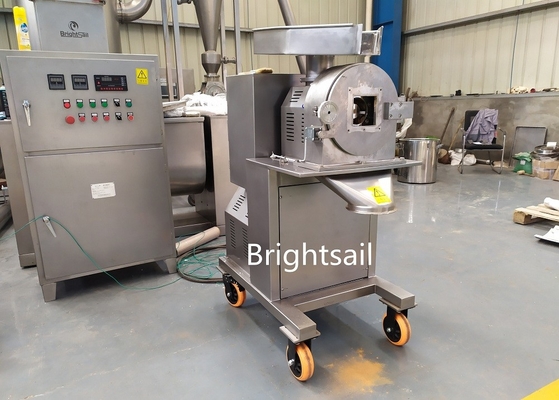

Food Industry Seasoning Processing Machines Cortex Cinnamomi Grinding Machine
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Working method:
The machine consists of a frame, a crushing chamber and a feeding part. There is a movable cutter head on the main shaft, a fixed ring tooth is arranged in the crushing cavity, and a screen is arranged under the ring tooth. When the main shaft rotates at a high speed, the movable cutter head rotates, and the material is subjected to the impact and friction between the fixed ring teeth and the movable hammer. Under the combined action of shearing, shearing and impact between materials, crushing is realized. The machine is simple in structure, durable, stable in operation, obvious in crushing effect, and convenient in maintenance. The crushed materials can be directly discharged from the crushing chamber of the main machine, and the particle size can be obtained by changing the mesh of different apertures. (The speed can also be adjusted to obtain the fineness of the finished product.)
Main features:

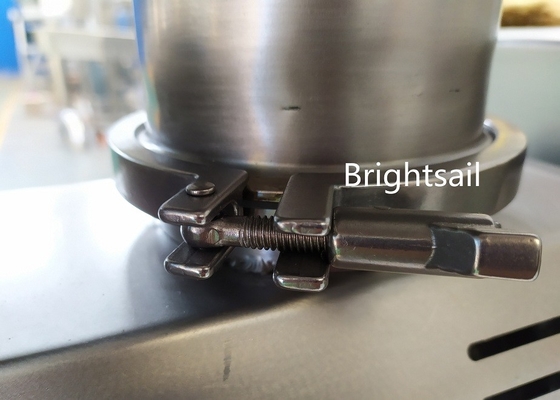

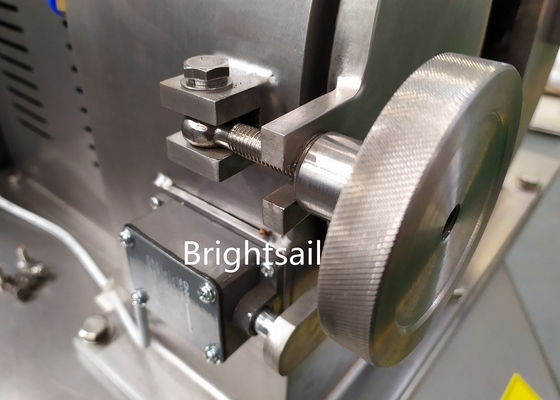

Detailed image:
