Product Details:
|
| Product Name: | Coarse Grinder | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Warranty: | One Year |
| Feed Size: | <100mm | Output Size: | 0.5-20mm |
| Capacity: | 50-1000 Kg/h | Crushing Fineness: | 0.5-20mm |
| Other Name: | Seamoss Grinder | ||
| High Light: | foodstuff industry coarse grinder,20nm crushing fineness coarse grinder,0.5nm crushing fineness coarse grinding machine |
||

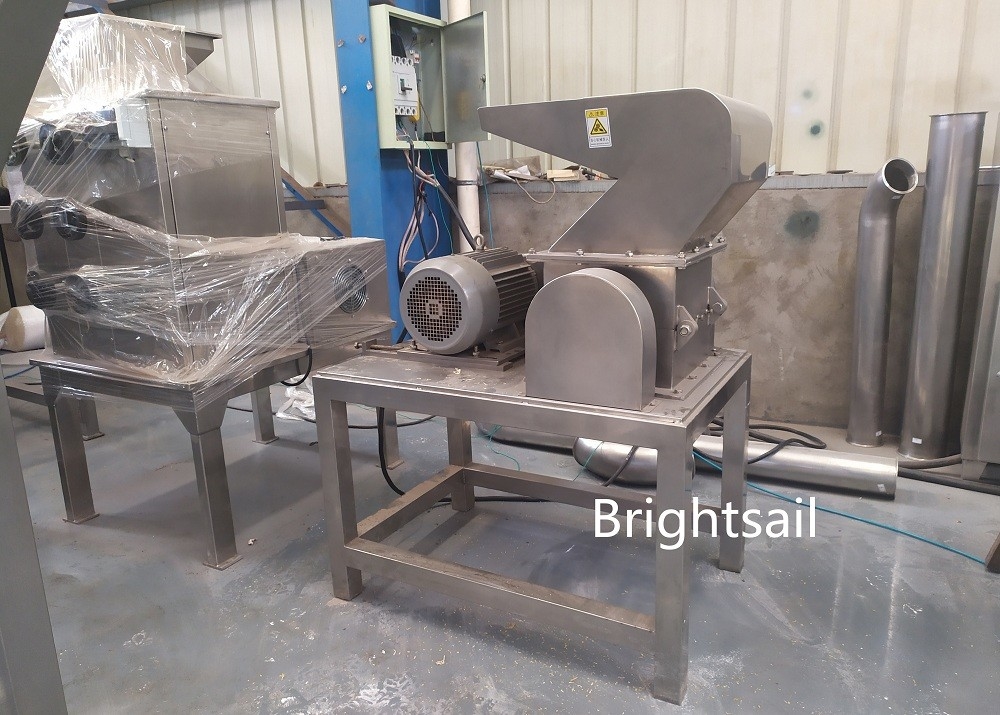

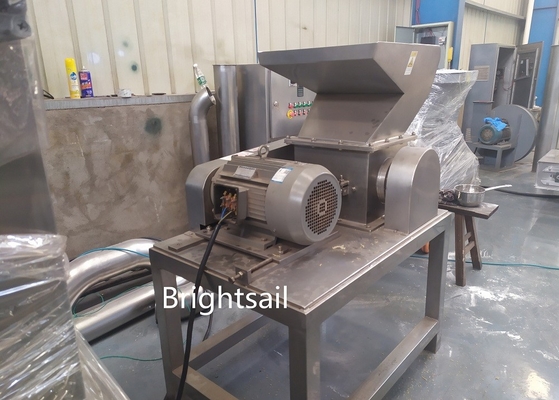

Foodstuff Industry Customized 0.5-20nm Crushing Fineness Coarse Grinder
BSC crusher is suitable for chemical industry, pharmaceutical, electronic, food and other industries before the fine crushing process of supporting equipment. Wait. This machine is suitable for crushing raw materials, plastic, rubber and other hard and tough materials in the process of raw material preparation. In particular, not subject to material viscosity, hardness, softness and fiber shape of the restrictions on all materials have a good effect. The parts in contact with the crushed materials are made of stainless steel and have good anti-corrosion performance. The House is completely enclosed for easy cleaning. The inner wall has been treated to make the surface uniform and smooth, ensuring the production of medicine, food, chemical and other materials more in line with the National GMP standards.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 | 960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |
Working method:

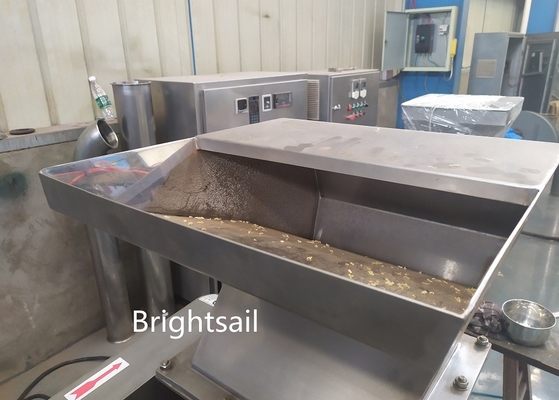

The machine is of horizontal crushing structure. The material enters the crushing chamber through the hopper, is cut and impacted by the fixed knife and rotary knife, and automatically flows into the outlet under the action of rotating centrifugal force
Main features:
1) simple structure, easy installation and maintenance.
2) easy to clean, low noise.
3) stable operation, good wear resistance.
4) pneumatic, electrical, operating components are advanced components of world-famous brands.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
Drawing:
