Product Details:
|
| Product Name: | Garlic Powder Making Machine | Capacity: | 20-1800kg/h |
|---|---|---|---|
| Input Size: | <15 Mm | Feed Motor(kw): | 0.55-1.5 |
| Crusher Motor: | 11-75 Kw | Function: | Grinding |
| Other Name: | Superfine Powder Making Machine | ||
| High Light: | 60mesh ginger garlic powder making machine,spice industry garlic powder making machine,2500 mesh garlic powder making machine |
||
Spice Industry Ultra Fine 60 To 2500mesh Garlic Powder Making Machine
Product Introduction:

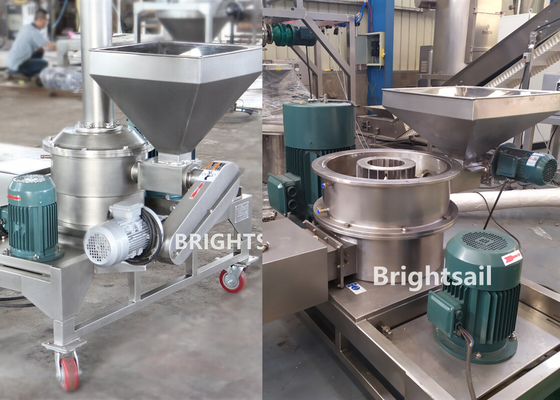

BSP garlic powder making machine is an advanced pulverizer with the advantages of stable technical performance, low noise, low consumption, high efficiency, adjustable fineness and low temperature rise. It is very suitable for sugar, food powder, herbs, spices and so on. The unit is composed of crusher part, powder collecting device, conveying pipe, electric control cabinet and so on. The crusher part is equipped with air grading equipment, which can adjust the product granularity arbitrarily to prevent excessive crushing. The crushed powder is conveyed to the cyclone by negative pressure and discharged by the discharge valve.
Technical Data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |

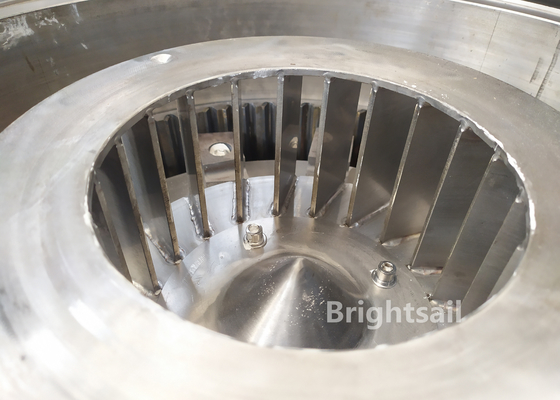

| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Main features:
1. Very fine powder manufacturing. In the food industry, raw materials can be ground to more than 300 mesh (such as rice and turmeric); In the chemical industry, materials can be ground to more than 1000 mesh. (e.g. talc)
2. When the crushing chamber works, the powder size can be changed by frequency conversion speed regulation, without screen or without screen.
3. There is no dust in the production process, and the dust can be collected in the dust collection box.
Working Method:

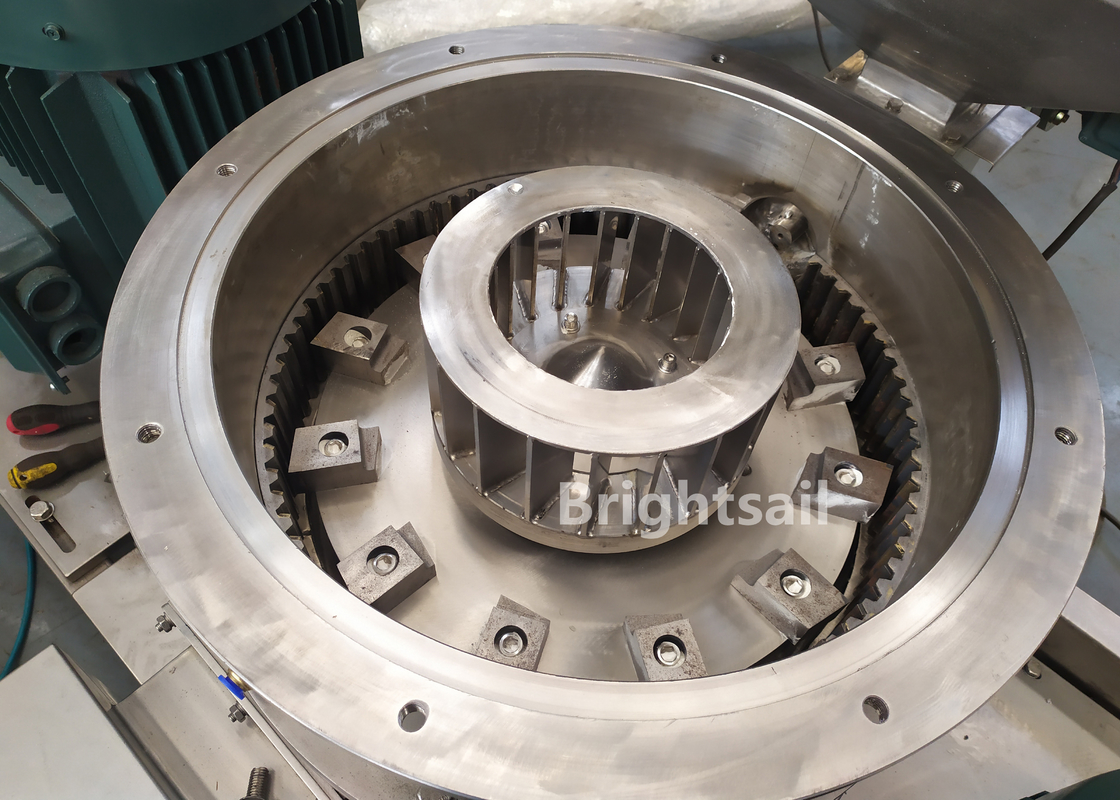

The raw material is sent to grinding room by screw feeder through hopper, cut and cut by high-speed cutter, and then fed into cyclone separator and bag filter by negative pressure suction. This is why it can be used to make ultra-fine powders and as a fine pulverizer.
