Product Details:
|
| Product Name: | Fenugreek Seed Grinding Machine | Materials: | Herbs,grains,spice... |
|---|---|---|---|
| Model: | Customized | Input Size: | <15mm |
| Fineness: | 60-2500 Mesh | Other Name: | Fenugreek Crusher Machine |
| Final Product: | Fenugreek Powder Machine | ||
| High Light: | ultrafine pulverizer powder grinder machine,powder grinder machine fenugreek seed making,ultrafine fenugreek seed grinding machine |
||
Ultrafine Pulverizer 60 To 2500mesh Fenugreek Seed Powder Making Machine
BSP series ultrafine powder machine is one of our most popular machines in our company.our customers usuallu use it to make icing sugar,salt powder,flour,sppice powder,medical powder...This fenugreek seed grinder machine with wide usage.If you need to make fine powder in industries of foodstuff,chemical,medical...etc.it is suitable.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:

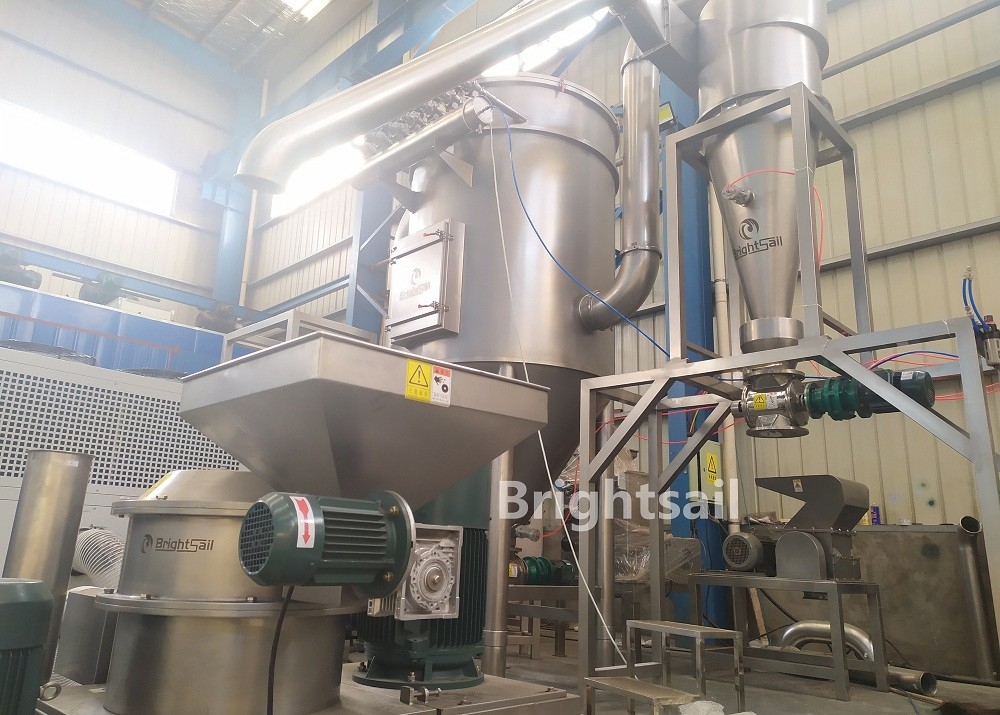

The materials are sent to the air inlet bypass duct by the feeding device controlled by the frequency converter, and then pneumatically transported to the classifier. After entering the mill, the materials are sent to the classifier first, and the materials of any specification are directly sent to the product filter through the classifier. The coarse material rejected by the classifier falls into the grinding area between the rotor hammer and the surrounding grinding track. The particle size will not decrease until the particle is fine enough to be picked up by the air flow in the mill and presented to the classifier again. This internal recirculation is repeated until the material is fine enough to pass through the classifier and leave the air classifier. The product is separated from the delivered air in the filter. The product is discharged through the rotary valve, and the clean air enters the system fan and atmosphere through the filter element.
Advantages:
1. Compact design and reasonable structure. The material is equipped with an internal grading mechanism, so that grinding and grading can be carried out at the same time, thereby reducing energy consumption.
2. Equipped with a blower to continuously dissipate heat, suitable for the grinding of heat-sensitive materials.
3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Adjust the speed or air volume of the classifier without stopping the machine to obtain a uniformly distributed product with the required particle size.
5. The top cover of the main unit is opened by a pneumatic spring, and the structure of the main body should be such that it can be opened to both sides so that it will not encounter obstacles when cleaning and repairing internal parts.
6. The main abrasive parts are made of high-grade alloy tool steel, which greatly prolongs the service life or replacement cycle of the worn parts.
7. The bearing system adopts imported high-speed precision bearings, the whole machine runs smoothly, with low vibration and noise.
8. The pipeline adopts a quick disassembly structure, which is quick and convenient to disassemble and clean.
9. Equipped with cyclone separator and collector, there will be no fly powder during the production process. The dust bag can effectively collect the fine powder in the airflow and meet the clean and environmental protection requirements of exhaust gas emission.
10. The fine powder collected by the dust bag can be effectively recycled. Thereby reducing material loss.
