Product Details:
|
| Product Name: | Coconut Meat Grinder Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| Other Name: | Coconut Grinder | ||
| High Light: | 50kg/h granules making machine,foodstuff industry granules making machine,coconut meat grinder granules manufacturing machine |
||

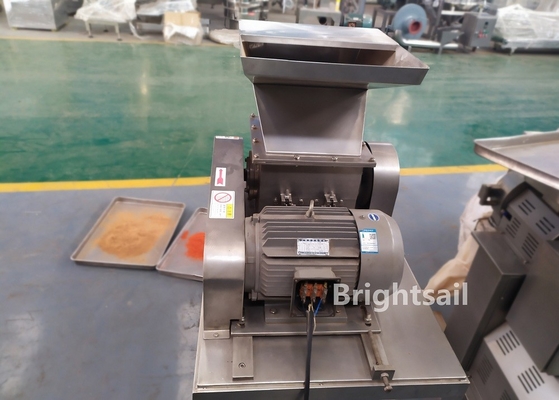

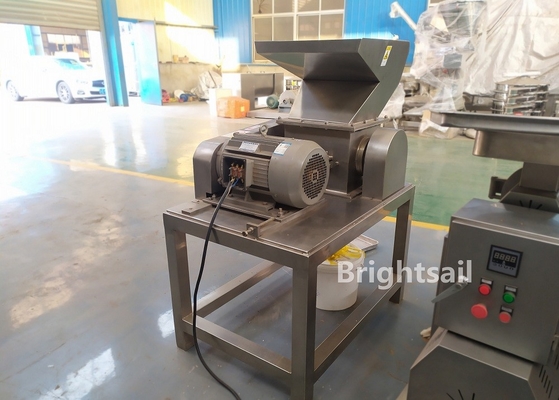

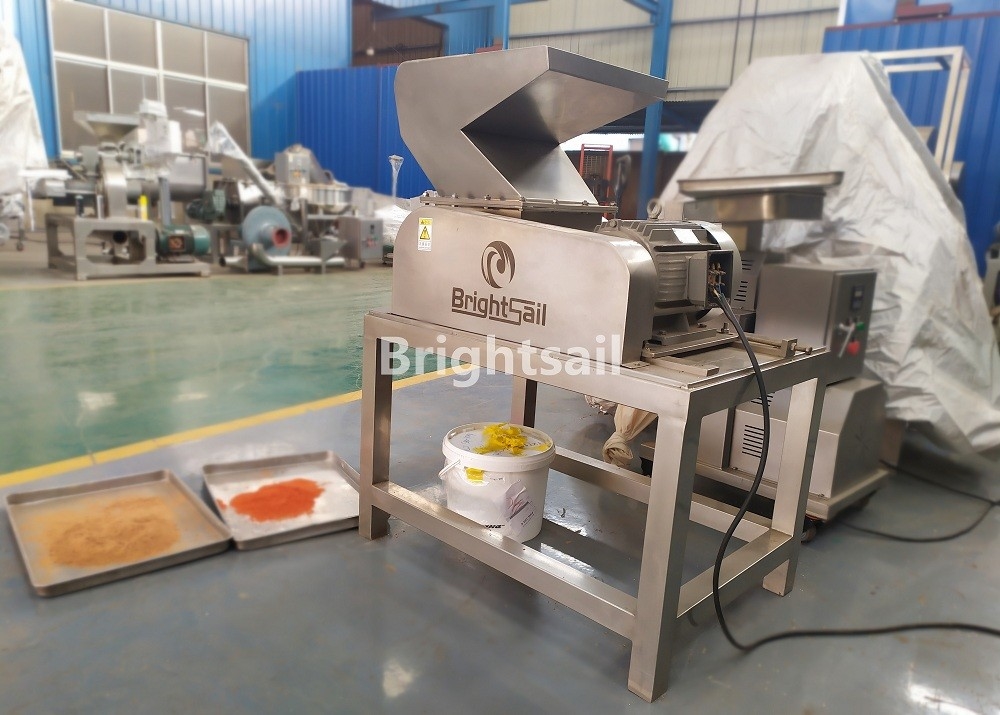

Foodstuff Industry Small Granules Making Coconut Meat Grinder Machine
BSC coarse crusher is designed to crush big size materials into small pieces(0.5-20mm). It is widely applied in medical, food, chemical, metal, herb, agriculture and other fields.Such as spices,Chinese herb,roots,tea leaves,grains,etc.
Our customers usually use it as a primary mill in the grinding process,this type of crusher machine is good at making small granules before fine grinding.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 |
960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |
Working method:
The material enters the crushing chamber through the hopper, is crushed under the cutting and impact of the fixed and rotating knives, and automatically flows into the outlet under the action of the rotating centrifugal force.
Main features:
1. The machine is composed of frame, motor, feeding hopper and crushing chamber. The granularity is changed by changing screen Mesh.
2. This machine has beautiful appearance, harmonious color matching and good stability of spray paint coating.
3. Hopper, crushing chamber, funnel structure is designed separately, easy to install and disassemble.
4. The tool is made of imported high quality tool steel. It can be used for many purposes and has long service life.
5. The utility model has the advantages of strong structure, convenient operation and low power consumption.
6. Motor with overload protection device, power chain protection system.
