Product Details:
|
| Heating Source: | Steam+electricity | Material: | Stainless Steel 304 |
|---|---|---|---|
| Temperature Range: | 20-160(adjustable) | Voltage: | Customized |
| Package: | Wooden Case Or Container | Product Name: | Food Dehydrator |
| Other Name: | Drying Machine | ||
| High Light: | stainless steel 304 industrial food dehydrator,60kg capacity industrial food dehydrator,industrial size food dehydrator 480kg capacity |
||

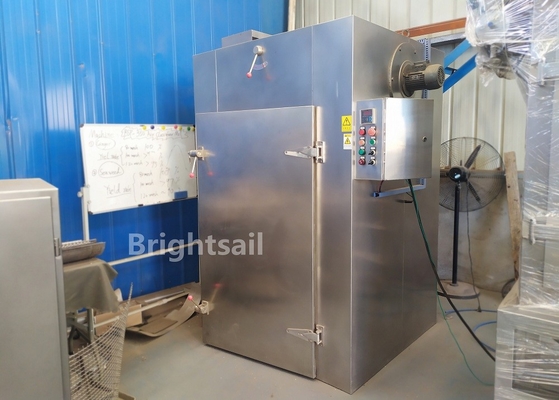

Stainless Steel 304 Customized 60 To 480 Kg Per Batch Capacity Industrial Food Dehydrator
BSO dryer is widely used for heating and dehumidification of raw materials and products in pharmaceutical, chemical, food, light industry, heavy industry and other industries. Most of the hot air circulates in the oven, which has high thermal efficiency and low energy consumption. The oven is equipped with adjustable air plate and adopts forced ventilation to dry the target materials evenly.
Working method:
It works by using steam or electrical energy as heat. Its heat is generated by steam radiators or electric heating elements. The Fan carries on the convection heat exchange, transfers the heat to the material, unceasingly adds the fresh air to the oven, discharges in the oven the moist air. The oven should be kept at an appropriate relative temperature and humidity during drying. The most important feature is that most of the hot air circulates in the drying chamber, which enhances the heat and mass transfer and saves energy.
Main features:

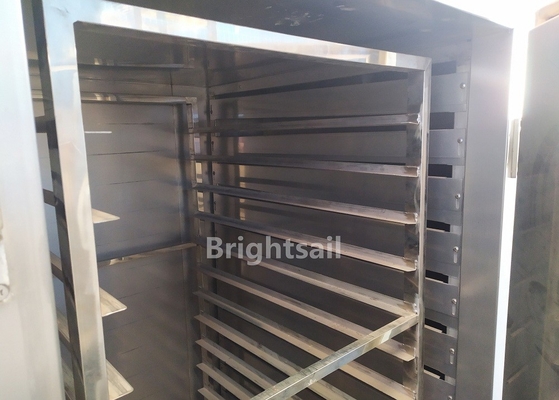

1. The drying room provides hot air from top to bottom to penetrate all materials to make the drying uniform and thorough.

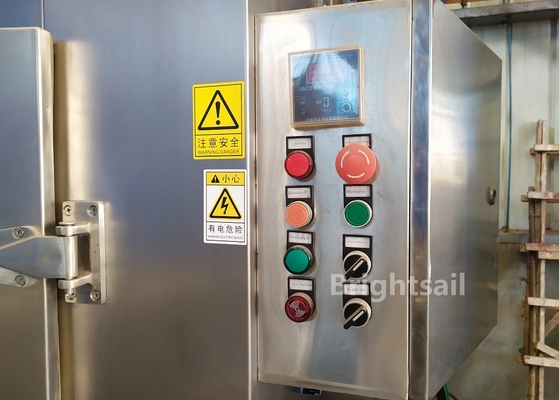

2. The hot air drying oven has a high degree of automation. Once it starts working, there is no need for operators. When a fault occurs and the temperature exceeds the alarm value, the power will be cut off automatically.
3. Independent research and development, 30% more efficient than traditional heating equipment, and no pollution to the environment. The energy-saving and durable furnace body greatly improves the output and saves the cost.
4. The circulation system adopts a special high temperature and high moisture-proof fan with large diameter to ensure uniform and continuous thermal cycle.
5. The machine runs smoothly and has low noise.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
