Product Details:
|
| Product Name: | Plastic Granules Making Machine | Material: | SS304/316 |
|---|---|---|---|
| After-sales Services: | Provide | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| Other Name: | Industrial Grinder | Pre-sales Services: | Provide |
| Certifications: | CE & ISO | ||
| High Light: | 100mm plastic granules making machine,ss316 plastic granules making machine,super absorbent composite granules making machine |
||

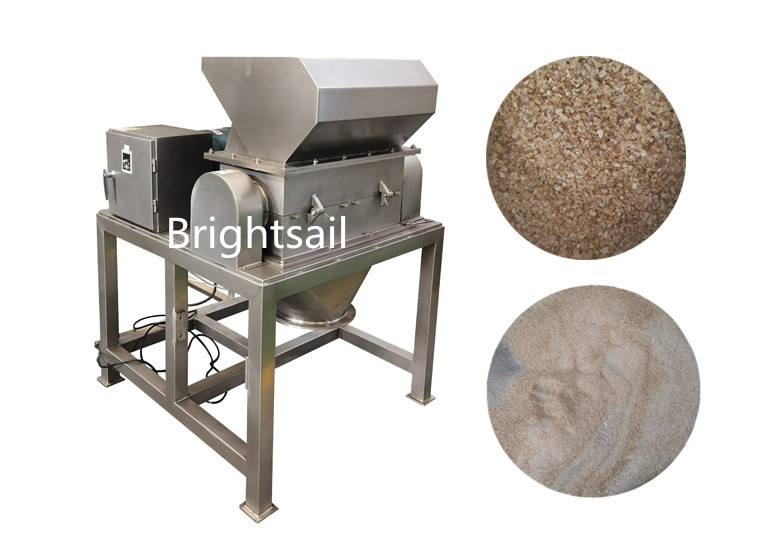

Industrial Plastic Granules Making Machine Super Absorbent Composite Material Crusher
In the video above,we used BSC-300 coarse crusher to make the super absorbent composite materials into 1-2 mm granules.
The BSC coarse grinder is usually used to crush large-size materials into small pieces (0.5-20mm) before fine gridning.,so it usually be used as promary mill in the gridning process.
It can be widely used in medical, food, chemical, metal, herbal medicine, agriculture and other fields. Such as spices, herbs, roots, tea, grains and so on. Our customers usually use it as a primary mill in the grinding process. This type of mill is good at making small particles before fine grinding.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960 |
960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |
Working method:

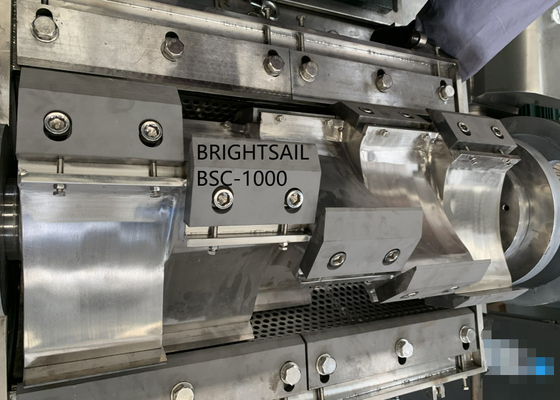

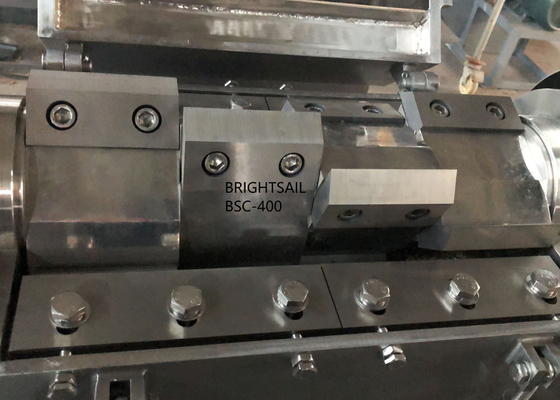

The material enters the crushing chamber through the hopper, is crushed under the cutting impact of the fixed knife and the rotating knife, and automatically flows into the discharge port under the action of the rotating centrifugal force.
Main features:
1. The machine is composed of frame, motor, feed hopper and crushing chamber,you can change the particle size by changing the screen.
2. The machine has beautiful appearance, coordinated color matching and good stability of paint coating.
3. The structure of hopper, crushing chamber and hopper is designed separately, which is convenient for installation and disassembly.
4. The tool is made of imported high-quality tool steel. Wide application and long service life.
5. The patented technology of the utility model has the advantages of firm structure, convenient operation and low power consumption.
6. The motor is equipped with overload protection device and power chain protection system.
Why Choose Us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Crushing Effect:
