Product Details:
|
| Product Name: | Spices Powder Making Machine | Materials: | Ginger,turmeric.cummin... |
|---|---|---|---|
| Model: | Customized | Input Size: | <15mm |
| Fineness: | 60-2500 Mesh | Other Name: | Ginger Grinder |
| Final Product: | Fine Spice Powder | ||
| High Light: | 40kg/h powder grinder machine,seasoning industry powder grinder machine,seasoning industry spice grinding pulverizer |
||

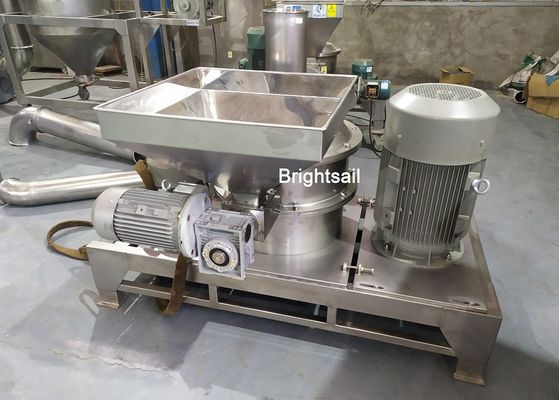

Seasoning Industry 60 To 2500mesh Spices Powder Grinder Machine
BSP series spice milling machine is one of the most popular products of our company. Our customers usually use it to make sugar powder, salt powder, flour, spice powder, and othde fine powder...this spice mill is widely used.For making fine powder production in food, chemical, pharmaceutical and other industries,this spice grinder is appropriate.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
The material is sent to the air inlet bypass pipe by the feeding device controlled by the frequency converter, and then pneumatically conveyed to the classifier. After the materials enter the mill, they are first sent to the classifier, and materials of any specification are sent directly to the product filter through the classifier. The coarse material removed by the classifier falls into the grinding area between the rotor hammer and the surrounding grinding track. The particle size will not decrease until the particles are fine enough to be taken away by the airflow in the mill and presented to the classifier again. This internal recirculation is repeated until the material is fine enough to pass through the classifier and leave the air classifier. The product is separated from the conveyed air in the filter. The product is discharged through the rotary valve, and the clean air enters the system fan and the atmosphere through the filter element.
Advantages:
1. Compact design and reasonable structure. There is a grading mechanism inside the material, which can grind and grade at the same time to reduce energy consumption.
2. Equipped with blower for continuous heat dissipation, suitable for grinding of heat sensitive materials.
3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Adjust the speed or air volume of the classifier without shutdown to obtain products with uniform distribution of required particle size.
5. The top cover of the main engine is opened by pneumatic spring, and the structure of the main engine shall be able to open to both sides, so that there will be no obstacles when cleaning and repairing internal parts.
6. The main abrasive parts are made of high-quality alloy tool steel, which greatly prolongs the service life or replacement cycle of wear parts.
7. The bearing system adopts imported high-speed precision bearings, with stable operation, low vibration and noise.
8. The pipeline adopts quick disassembly structure, which is fast and convenient for disassembly and cleaning.
9. Equipped with cyclone separator and trap, there will be no flying powder in the production process. The dust removal cloth bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of waste gas emission.
10. The fine powder collected by the dust removal cloth bag can be effectively recovered. So as to reduce material loss.
