Product Details:
|
| Material: | SUS304,SUS 316,carbon Steel | Volume: | 60-12000L |
|---|---|---|---|
| Warranty: | One Year | Package: | Wooden Case Or Container |
| Product Name: | Ribbon Blender | Other Name: | Dry Powder Mixing Machine |
| High Light: | 300l horizontal ribbon blender,foodstuff industry mixing horizontal ribbon blender,300l horizontal ribbon mixer |
||

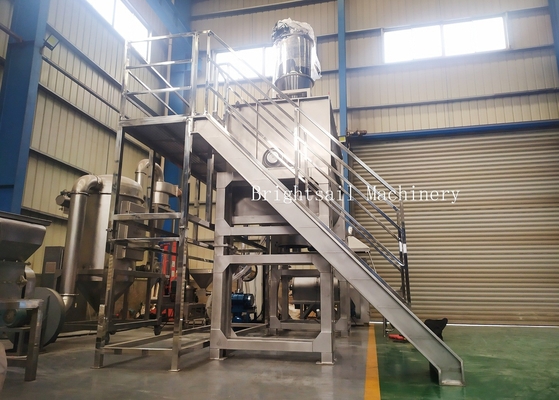

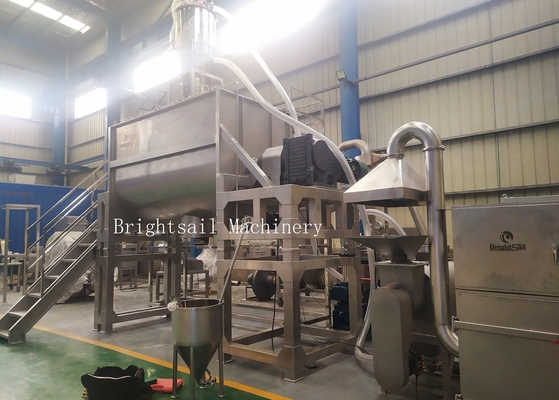

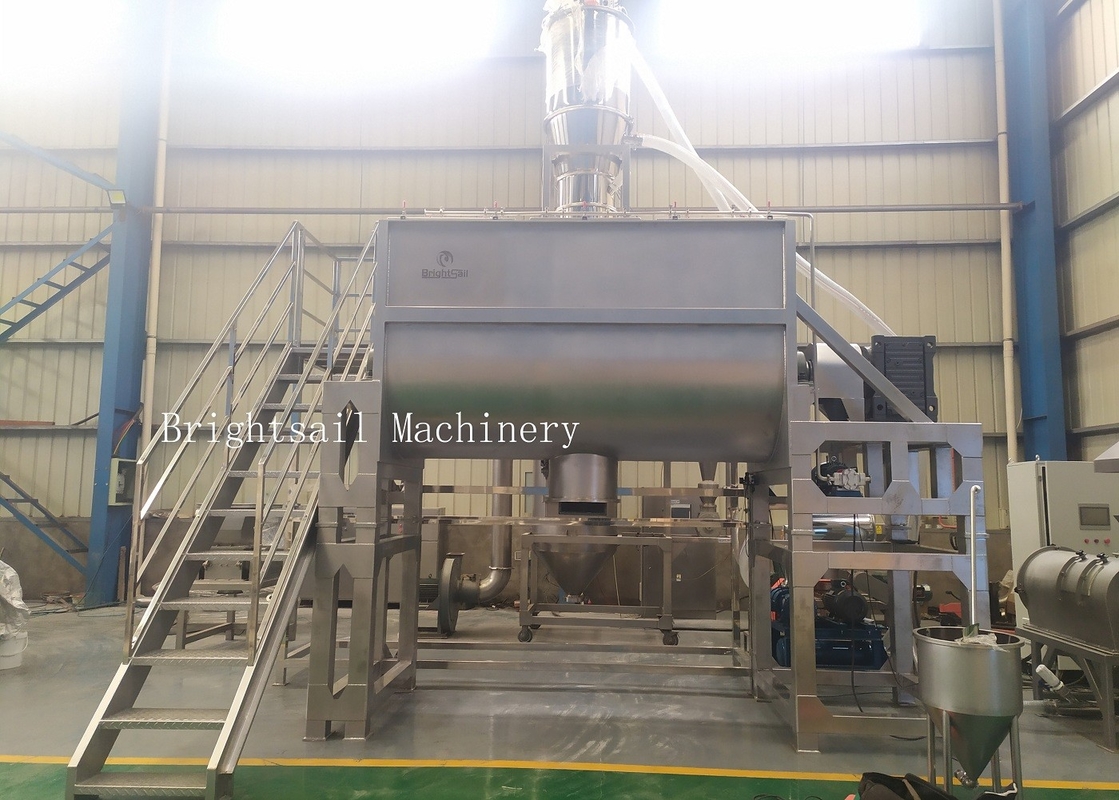

Foodstuff Industry Suitable For Granules And Powder Mixing Ribbon Blender
About Us:
Our company-Brightsail Machinery Co., Ltd is focus on the research of powder equipment, such as roasting machine,50kg cacao roasting machine, chemical powder mixer machine, detergent powder mixing machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Product Description:
Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center,and inside screw transmitting the material from center to sides to form convection mix.
Technical data:
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
Working Method:
The belt mixer is mainly composed of a mixing barrel, a mixer and a driving device. The double-twisted belt rotates together with the main shaft in the u-shaped barrel. The outer spiral belt pushes the material toward the center from both ends, and the inner spiral belt pushes the material toward the center from the center to both ends. In this way, material consistency is achieved. The discharge port is located in the center of the bottom, and the material can be completely discharged with the help of the external ribbon.
1. Under the feasibility factor, the mixing effect of the Horizontal Belt Mixer is not affected by the particle size and density, and it also has a good mixing effect for viscous materials.
2. Smooth mixing process to reduce the damage of fragile materials, flying knife structure also played a role in the crusher.
3. Horizontal structure, low height, easy installation.
4. In the mixing structure, the forward and reverse rotating screw rods are installed on the same horizontal axis to form a mixing environment with low power and high efficiency.
