Product Details:
|
| Heating Source: | Steam+electricity | Down Temp(℃): | ±2 |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Tray(piece): | 24~192 | Package: | Wooden Case Or Container |
| Product Name: | Circulation Oven | Other Name: | Dryer |
| High Light: | food industry dryer oven machine,hot air circulation drying oven machine,dehydrator drying oven machine |
||

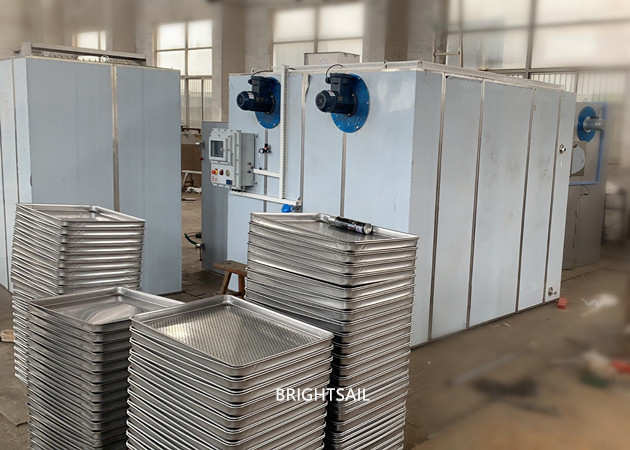

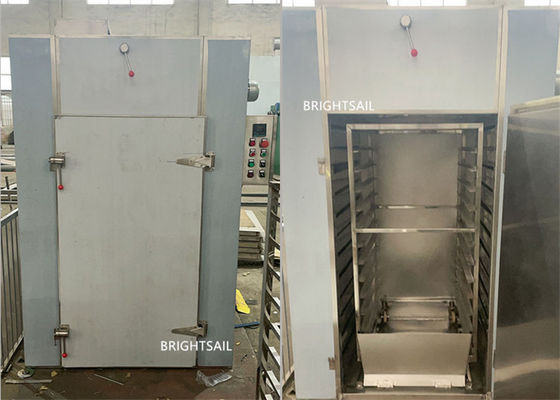

Food Industry Large Capacity Hot Air Circulation Drying Oven Dehydrator Machine
Why Choose Us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Description:
The food dryer is a multi-functional drying device, which mainly circulates the forced hot air heated by the electric heating tube or the steam heat exchanger in the box to enhance heat transfer and achieve the effect of drying materials. The hot air circulation drying oven is equipped with low noise, high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is fully sealed, which improves the thermal efficiency. The technology of hot air circulation oven is at the international advanced level. It is an energy-saving product that improves economic efficiency for many manufacturers. BSO industrial dryer adopts low noise and high temperature resistant axial flow fan and fully sealed automatic temperature control system, which increases the thermal efficiency of the oven from the traditional 3-7% to the current 35-45%. Our products can be customized as required.
Advantages:
1. The whole machine and baking tray are made of stainless steel.
2. Most of the hot air in the circuit, high thermal efficiency, energy-saving.
3. In the box uses the high pressure ventilation and the adjustable air board, causes the material to dry evenly.
4. It can come from steam or electricity.
5. Equipped with temperature control device, easy to install and maintain. Wide Range of application, can dry all kinds of materials. It is a multifunctional drying equipment.
