Product Details:
|
| Production Speed: | Drum Pin Mixer Granulator | Metering Method: | Volumetric Method |
|---|---|---|---|
| Work Volume: | About 12-400L | Other Name: | Rapid Mixer Granulator |
| Advantage: | High-efficiency | Material: | SS304 |
| Model: | Customized | Waranty: | 1 Year |
| Other Name: | Wet Method Granulation Machine | ||
| High Light: | stainless steel wet granulation machine,50l volume wet granulation machine,600l volume wet granulator |
||

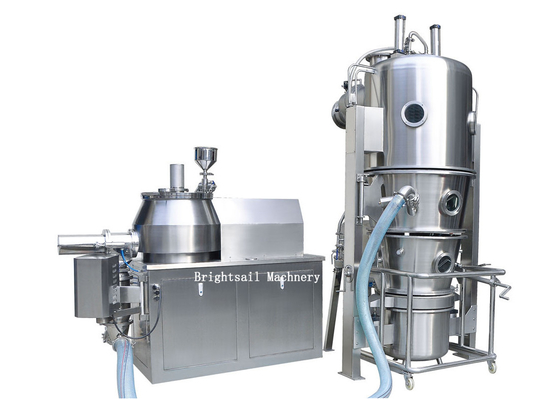

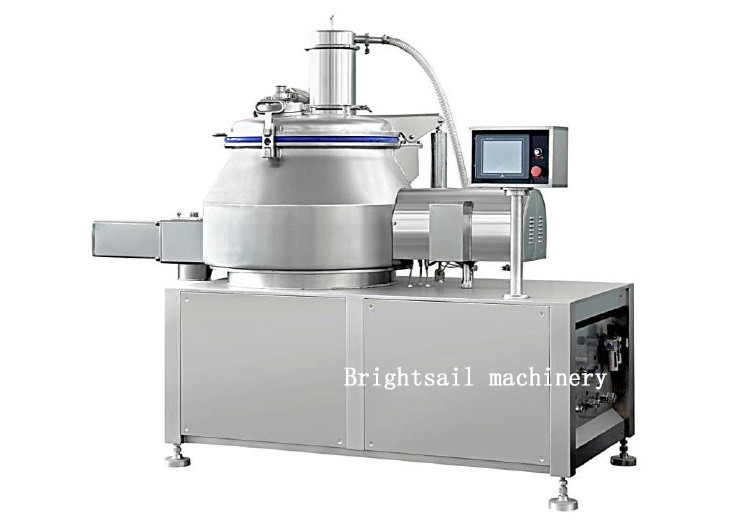

Stainless Steel 50 To 600L Volume Wet Method Granulation Machine
Packing And Shipping:
*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
FAQ:
Q: How do you package your machines?
A: If it is a small machine, it should be packed in a wooden box.
If it is a large machine or multiple machines, we will take the container, we will divide the machine into several parts, then wrap the machine with packaging film, and then fix it in the container with wire rope to prevent shaking during transportation. .
Description:
High-efficiency wet granulator is a special equipment for mixing and granulating powder, starch and adhesive when producing tablets in pharmaceutical industry. It is also suitable for mixing and granulating of powder materials in food and chemical industry.
Work process:
Adhesive high-speed cutting
Powder-----Dry blending---Wet blending---Uniform wet granules---discharging
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Features:

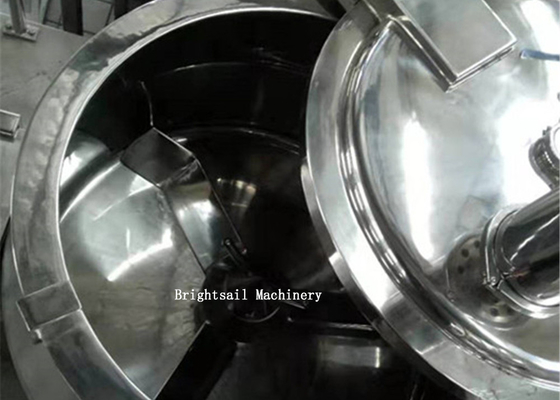

1. The main drum adopts the cylinder and conic tangent structure, which is propitious to the rolling of the material. The geometric angle of the agitator and the pelletizer is reasonable to ensure the best mixing and pelletizing effect.
2. PLC control man-machine interface, according to the program Automatic Adjustment Control, high degree of automation, easy to operate.
3. The speed of agitator and cutter are adjusted by frequency conversion, and the speed can be adjusted arbitrarily, which can meet the requirements of different kinds of granulating.
4. The whole process of dry and wet granulation is completed in the same closed container. Compared with the traditional process, the amount of binder is reduced by 25% , and the drying time is shortened.
5. There is no dead angle between the knife and the v-shaped shot-making knife, which can improve the granulation rate and the shot-out rate.
Detailed Images:
