Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304

Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304
Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304 Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304

Large Image :  Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSO
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304

Description
Heating Source: Steam/electricity Warranty: One Year
Material: Stainless Steel 304 Temperature Range: Room Temperature To 150 Degrees(adjustable)
Voltage: Customized Package: Wooden Case Or Container
Usage: Drying Application: Food, Pharmacy, Chemical, Etc
Product Name: Herb Ginger Spice Onion Drying Machine For Black Pepper And Fruit Drying
High Light:

Herb Ginger Drying Machine

,

Spice Onion Dehydrating Machine

,

Stainless Steel 304 Dehydrating Machine

herb ginger spice onion drying machine for black pepper and fruit drying





Brief description:

Brightsail company's hot air circulation drying oven, after several upgrading, has reached the advanced level at home and abroad. It is widely used in pharmaceutical, chemical, food, light industry and heavy industry raw materials and products for heating and dehumidification.

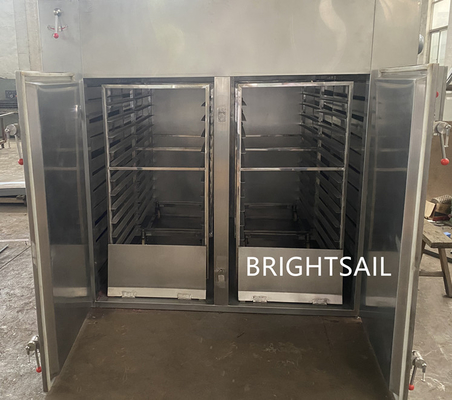

Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304 0



Basic principle:

The basic principle of BSO series drying oven is that after the heat source (steam and electricity) is connected, the heat source heats the heater located in the oven. The heater generates heat energy to heat the air in the oven, so as to form hot air, so as to achieve the purpose of drying materials



Main advantages:

1. Strong structure: The drying chamber is made of steel plate, so the body is very strong.
2. Uniform drying: the hot air flow in the drying chamber is very uniform.

3. Adjustable working temperature: room temperature to 150 degrees.
4. Adjustable drying time: the time for drying is adjustable.



Technical data:

Model BSO-O BSO-I BSO-II BSO-III BSO-IV
Capacity(kg/batch) 60 120 240 360 480
Blower power(kw) 0.45 0.45 0.9 1.35 1.8
Steam expend(kg/h) 15 20 40 60 80
Electric-heating power(kw) 9 15 30 45 60
Down temp(℃) ±2 ±2 ±2 ±2 ±2
Tray(piece) 24 48 96 144 192
Overall size(L*W*H)(mm) 1400*1200*2000 1200*2300*2000 2300*2200*2000 3200*2200*2000 4280*2200*2000
Weight(kg) 820 1500 1800 2200 2800



Wide application:

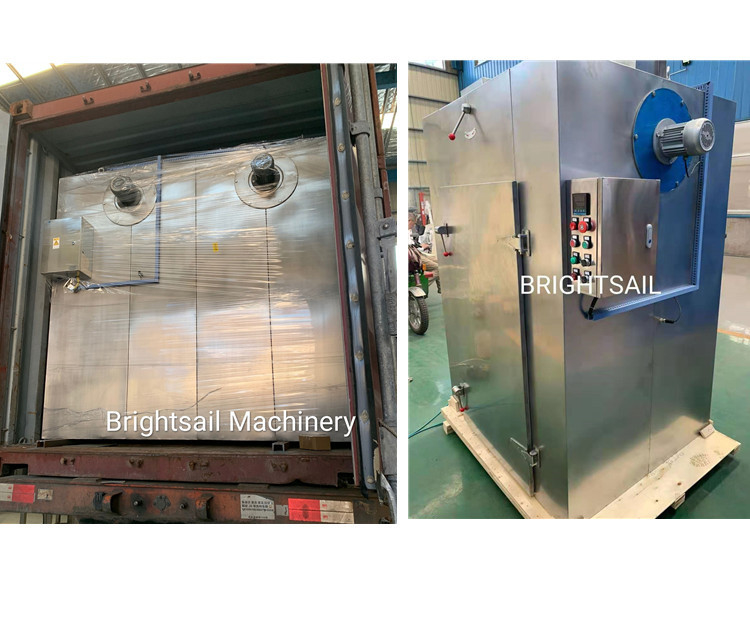

Herb Ginger Spice Onion Drying Dehydrating Machine Stainless Steel 304 1





After-sales service

1. Technical support for your installation, operation and maintenance.

2. One year warranty

3. Online support



FAQ:
1) What material you want to dry?
2) What is the water content of your raw material?
3) What the final water content you want to get by dryer?
4) About heat source, you will use electricity or steam?
5) How many kgs do you need for per batch?
6) How many work hours you plan to use per day? (like 8 hours, 10 hours,12 hours...etc)
