Product Details:
|
| Product Name: | Dehydrating Machine | Application: | Industry Of Chemical,foodstuff,medical |
|---|---|---|---|
| Heating Source: | Steam+electricity | Temperature Range: | 20-160(adjustable) |
| Certification: | CE,ISO | Package: | Wooden Case Or Container |
| Other Name: | Mushroom Drying Machine | After-sales Services: | Vegetable Dryer Machine |
| High Light: | Fruit Vegetable Dehydrating Machine,mushroom drying machine,Vegetable drying chamber |
||

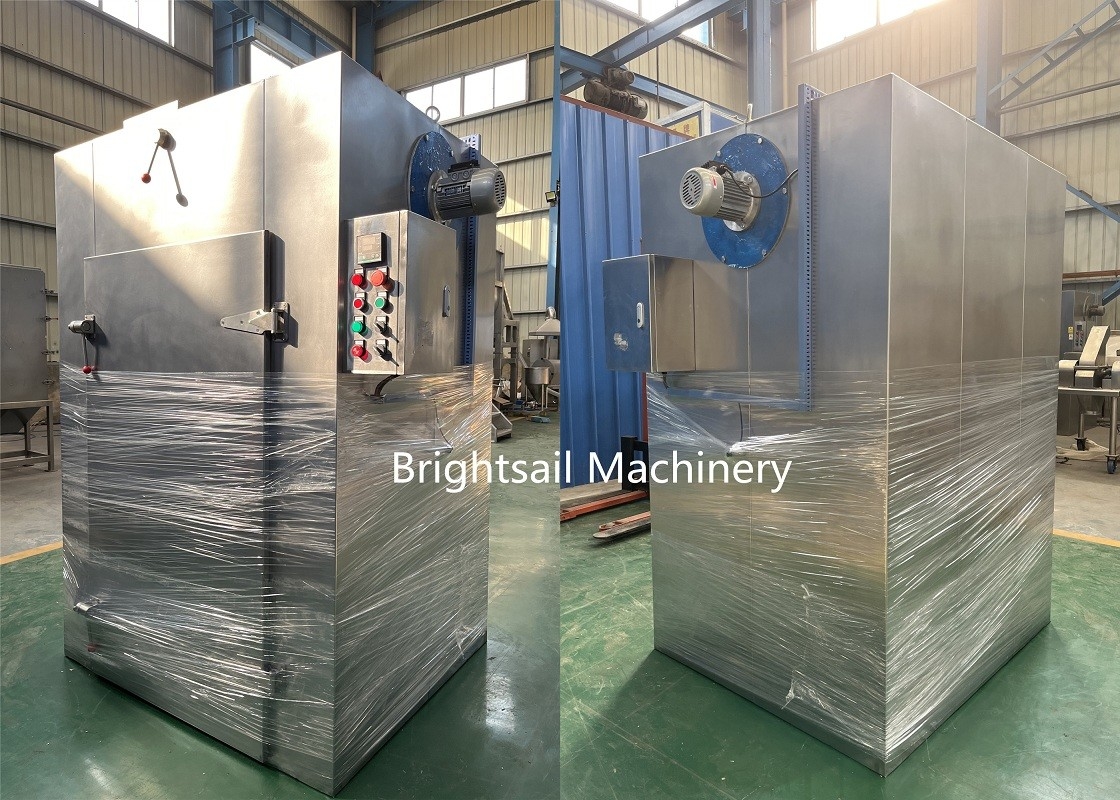

Industrial Large Capacity Customized Fruit Vegetable Chili Mushroom Dehydrating Machine
FAQ:
Q: how do you pack your machine?
A: If it is a small machine, it should be packed in wooden cases.
If it is a large machine or multiple machines, we will take the container. We will divide the machine into several parts, wrap the machine with packaging film, and then fix it in the container with steel wire rope to prevent shaking during transportation.
Company information:
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, drying machines...etc.
Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted provider of creative and value added process solutions.
Technical Data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Working Method:
Our BSO dryers use steam or electricity as heat. There is a steam radiator or electric heating element that produces heat. Uses the fan to carry on the convection heat exchange, transfers the heat to the material, unceasingly adds the fresh air, discharges the moisture. During the drying process, maintain the appropriate relative temperature and humidity in the box.
The biggest characteristic is the most hot air circulation inside the box, enhances the heat and mass transfer, saves the energy. These two series are widely used in pharmaceutical, chemical, food, light industry, heavy industry and other industries of raw materials and products heating and dehumidification.
Main Structure:
The machine is mainly composed of drying chamber, Combustion Chamber, electric heating pipe, ventilation system and control system.
1. Drying Chamber: Stainless Steel material is used in the interior and coated steel plate is used on the exterior, which can ensure the drying process to be sanitary and corrosion resistant, and at the same time, save the cost.
2. Combustion Chamber: In order to solve the production process of smoke and dust, the combustion chamber and chimney connection, efficient and convenient.
3. Ventilation: In humidity control, ventilation system plays an important role in balancing humidity and air in the machine.

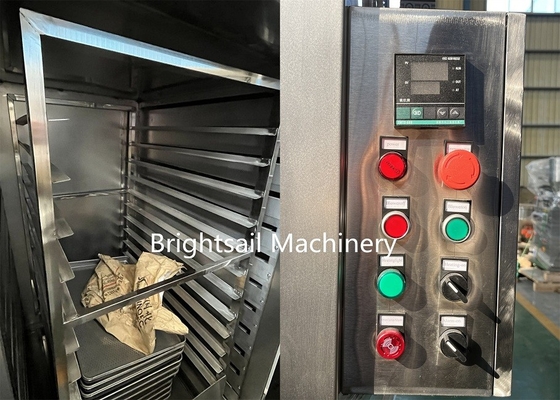

4. Control System: Control Cabinet Control Electric Heating pipe and fan. At the same time, a temperature and humidity tester is also installed to facilitate users to understand the actual situation.
Main features:
1. Adopt centrifugal multi-blade fan circulation system, special air duct structure, stable temperature control, uniform temperature field, standard manufacturing process, beautiful appearance, convenient operation and maintenance, only need to provide power supply and required working environment when purchasing.
2. The parts and assemblies are completely matched, and the main functional parts adopt the original parts of the international advanced level.
3. Oven control system, over-temperature power-off protection and buzzer alarm, 24 hours unattended, safe use.
4. Equipped with high temperature resistant silicone rubber waterstop; people's environmental awareness; protect workers' health.
